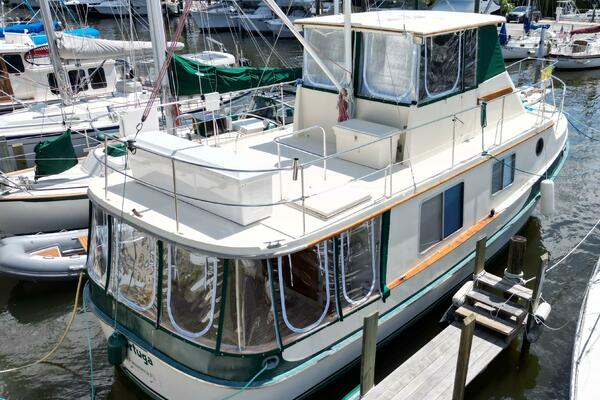

1984 Kadey-Krogen 36' _{(10.97 m)}

Measurements

LOA:36 ft 4 inLWL:34 ft 4 inLength on Deck:38 ft 0 inBeam:13 ft 6 inMax Bridge Clearance:14 ft 0 inMax Draft:3 ft 2 inGross Tonnage:23000.0Fuel Capacity:280 galWater Capacity:300 galHolding Capacity:30 gal

Main Description

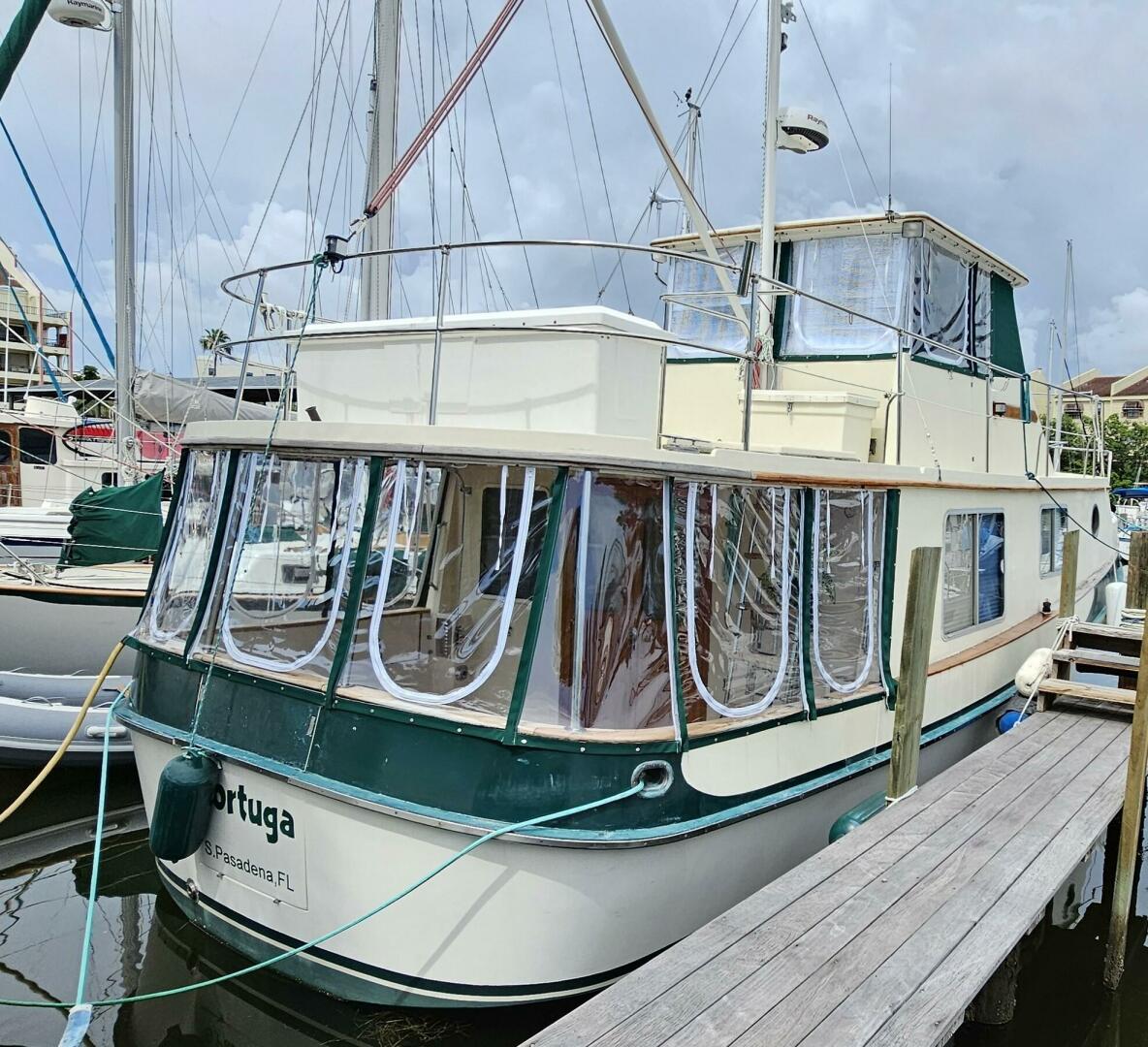

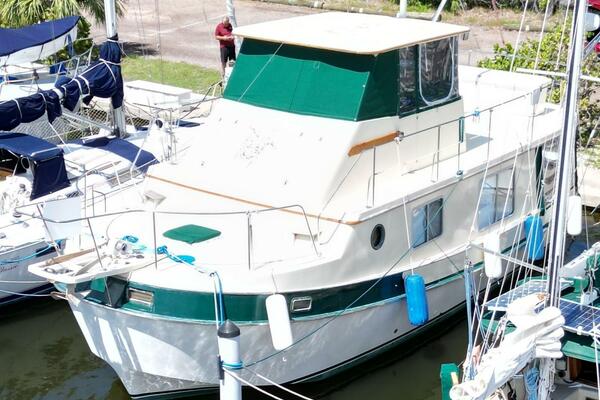

This Kadey Krogen Manatee is an ideal Live aboard or "Looper Boat" and has gone through an extensive refit.

Sudden health issue caused a change in plans

Be Certain to view the 360 Degree Virtual Tour

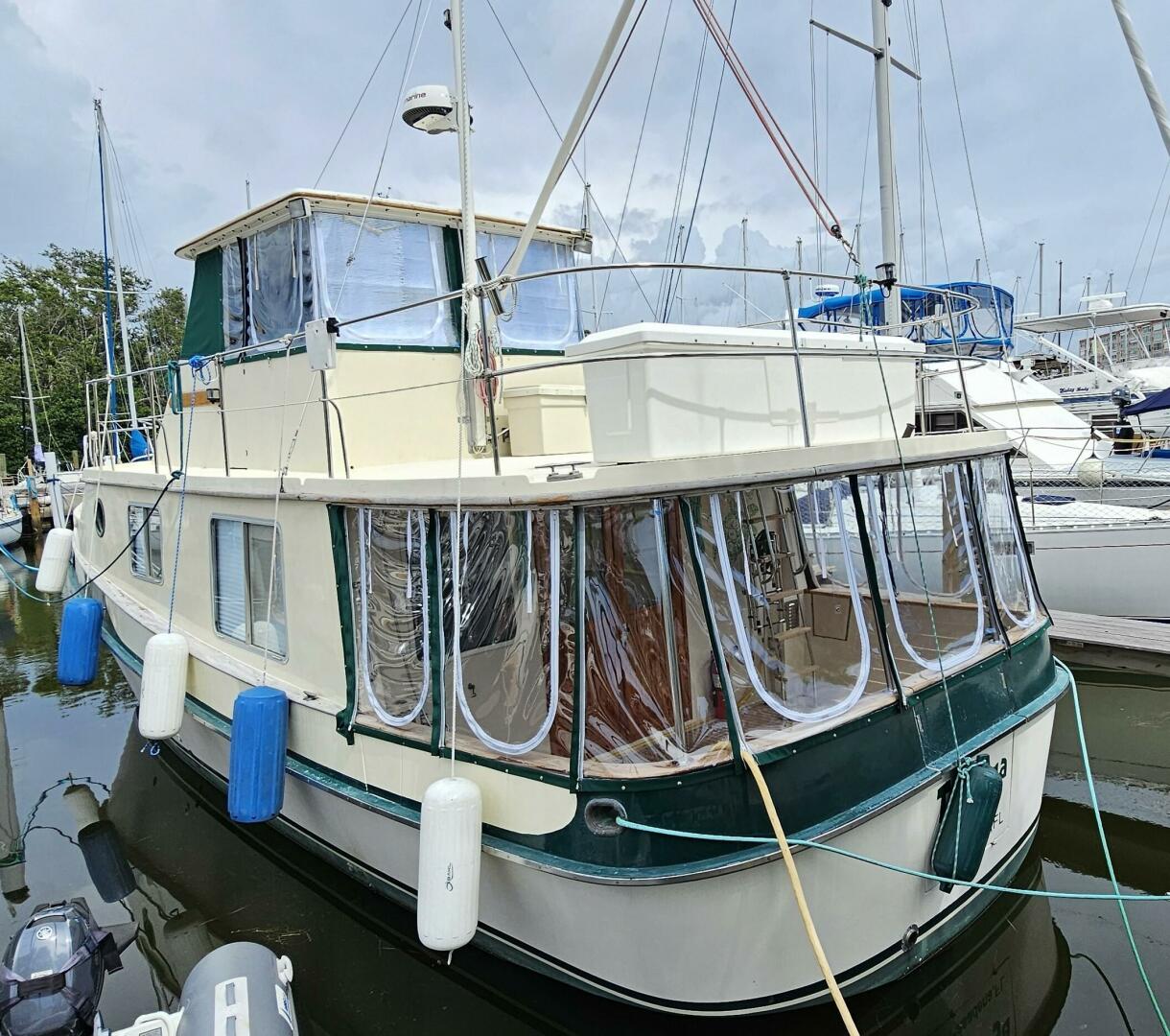

The Kadey-Krogen 36 Manatee trawler is a beloved model among trawler enthusiasts, valued for its quality construction, comfortable cruising, and timeless design. Her accommodations in only 36' rivals that of a boat 5 or 6 feet larger. With a single diesel engine and bow thruster, she is easy to maneuver and economical to run. Carrying 280 gallons of fuel and 300 gallons of water, she is capable of cruising extensive distance in comfort and safety.

If you are seeking a robust boat, with incredible accommodations, that has undergone extensive upgrades, is easy to handle and econimical to operate, then be certain to consider this amazing boat.

Conract Listing Broker for complete list of recent upgrades

A Brief History of the Kadey-Krogen 36 Manatee:

Here's a brief history of the Kadey-Krogen 36 Manatee:

• Introduction: The Kadey-Krogen 36 Manatee was introduced in the early 1980s as a smaller sibling to the highly successful Kadey-Krogen 42 trawler. The company aimed to create a more compact yacht that retained the seaworthiness and comfort of its larger counterpart.
• Design: The Manatee's design was focused on providing comfortable long-range cruising capabilities, with an emphasis on fuel efficiency and a sturdy hull. The yacht featured a full-displacement hull shape, a raised pilothouse, and a spacious interior layout that maximized livable space.
• The Manatee hull and cabin are of fiberglass sandwich construction with closed-cell PVC foam core; heavy hand lay-up using mat and roving. The state of the art construction is one of the most enduring and safest afloat. Closed-cell PVC foam does not deteriorate or absorb water. The composite structure serves both as a buoyancy material and shock, sound and temperature insulator. It rides quietly, increases impact strength and eliminates condensation build-up inside the hull. All joiner work, paneling and beam caps are of prime teak. Cabinetry is also teak
• Dimensions and Specifications: The Kadey-Krogen 36 Manatee measures approximately 36 feet in length overall (LOA) and has a beam of around 13 feet. It has a displacement of around 26,000 pounds, allowing for a comfortable ride even in challenging sea conditions. The Manatee is equipped with a single diesel engine, typically ranging from 80 to 120 horsepower, which provides efficient cruising speeds.

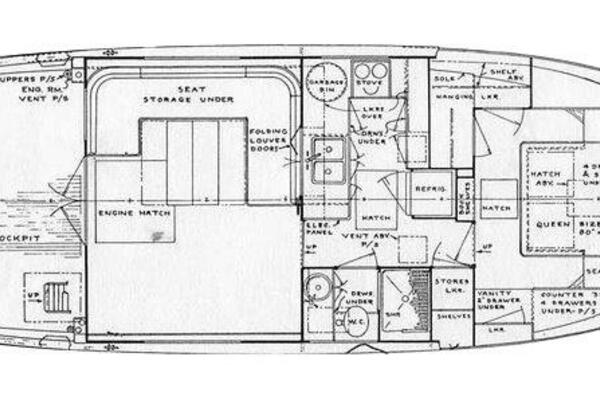

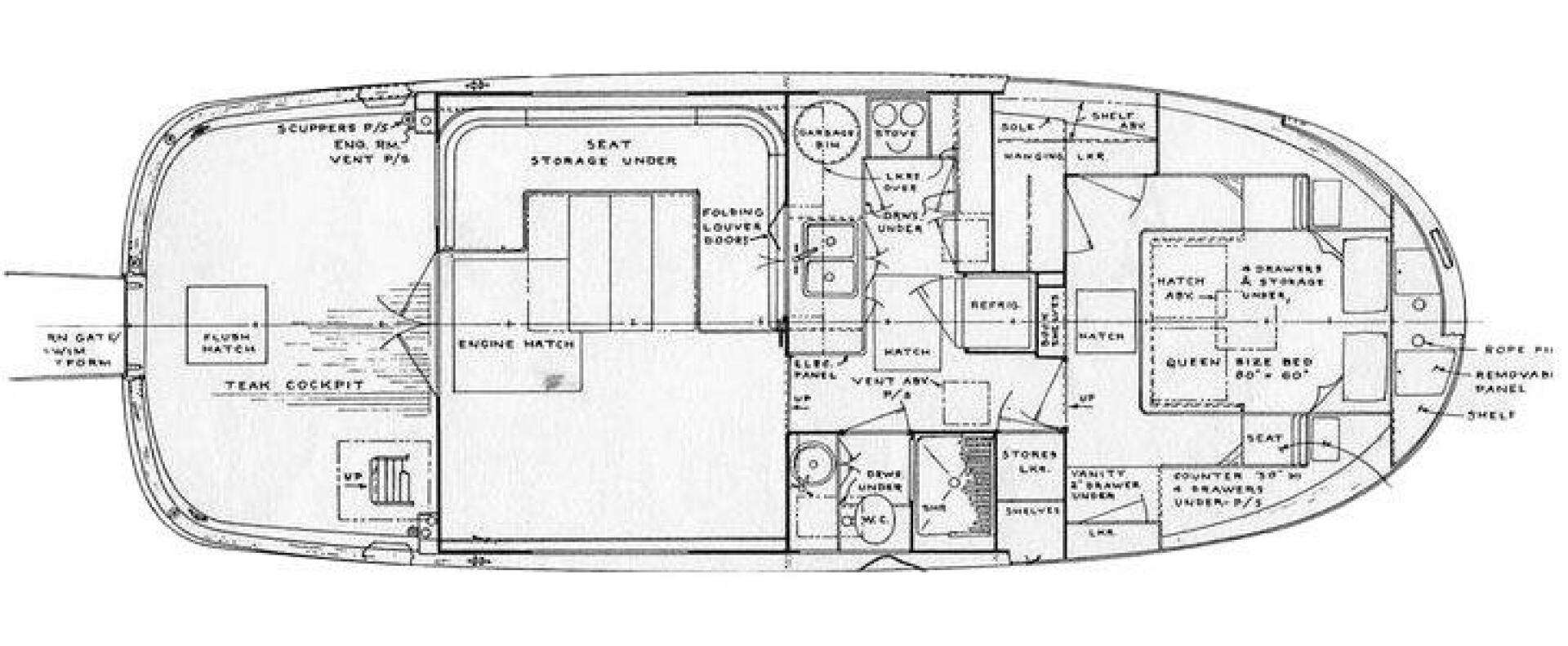

• Interior Layout: Despite its size, the Kadey-Krogen 36 Manatee offered a spacious and well-designed interior. The main deck typically featured a salon, a galley, and a pilothouse. Below deck, there was a forward stateroom, a head (bathroom), and additional sleeping accommodations in the salon. The yacht's interior was known for its high-quality teak woodwork and cozy atmosphere.
• Popularity and Legacy: The Kadey-Krogen 36 Manatee gained popularity among boating enthusiasts who sought a smaller trawler-style yacht without sacrificing comfort or seaworthiness. Its reputation for solid construction and excellent cruising capabilities made it a sought-after vessel for long-distance cruisers and liveaboard boaters.
• Production and Availability: Kadey-Krogen Yachts built the Manatee for over a decade, from the early 1980s until the mid-1990s. During that time, they produced a limited number of these yachts. As the years went by, used Kadey-Krogen 36 Manatees became available on the market, allowing boaters to acquire these well-regarded vessels.

Accommodations

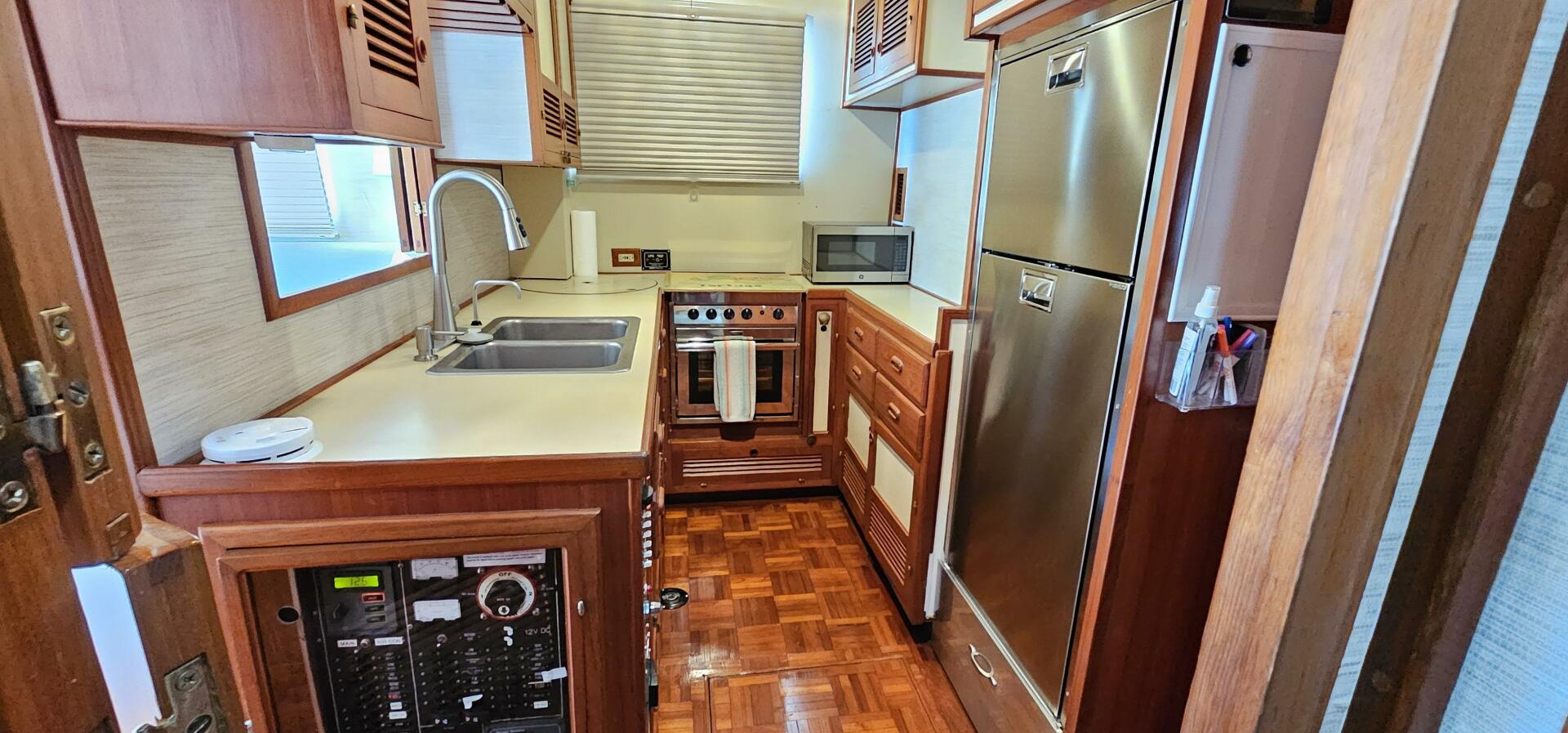

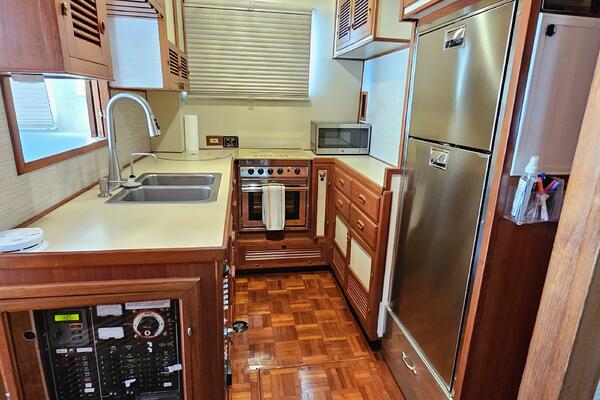

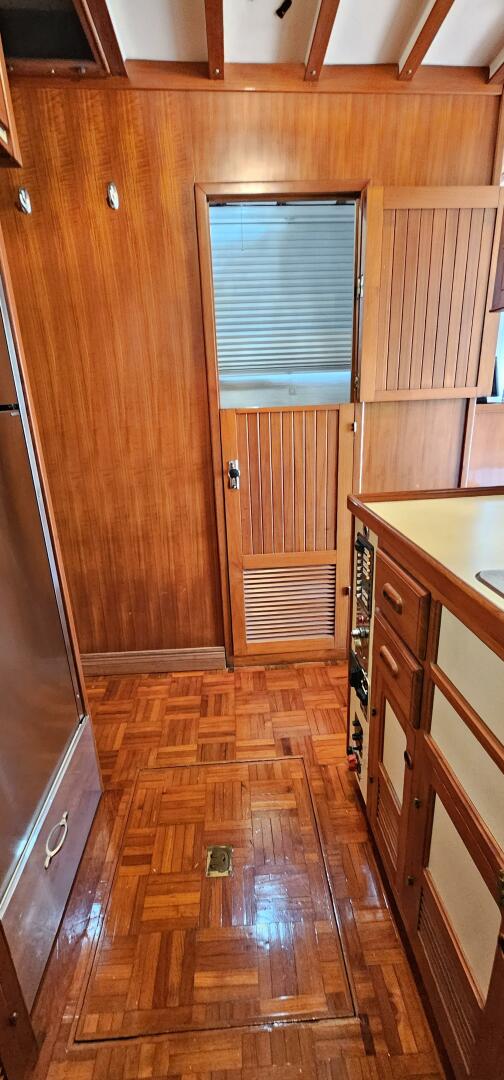

GALLEY

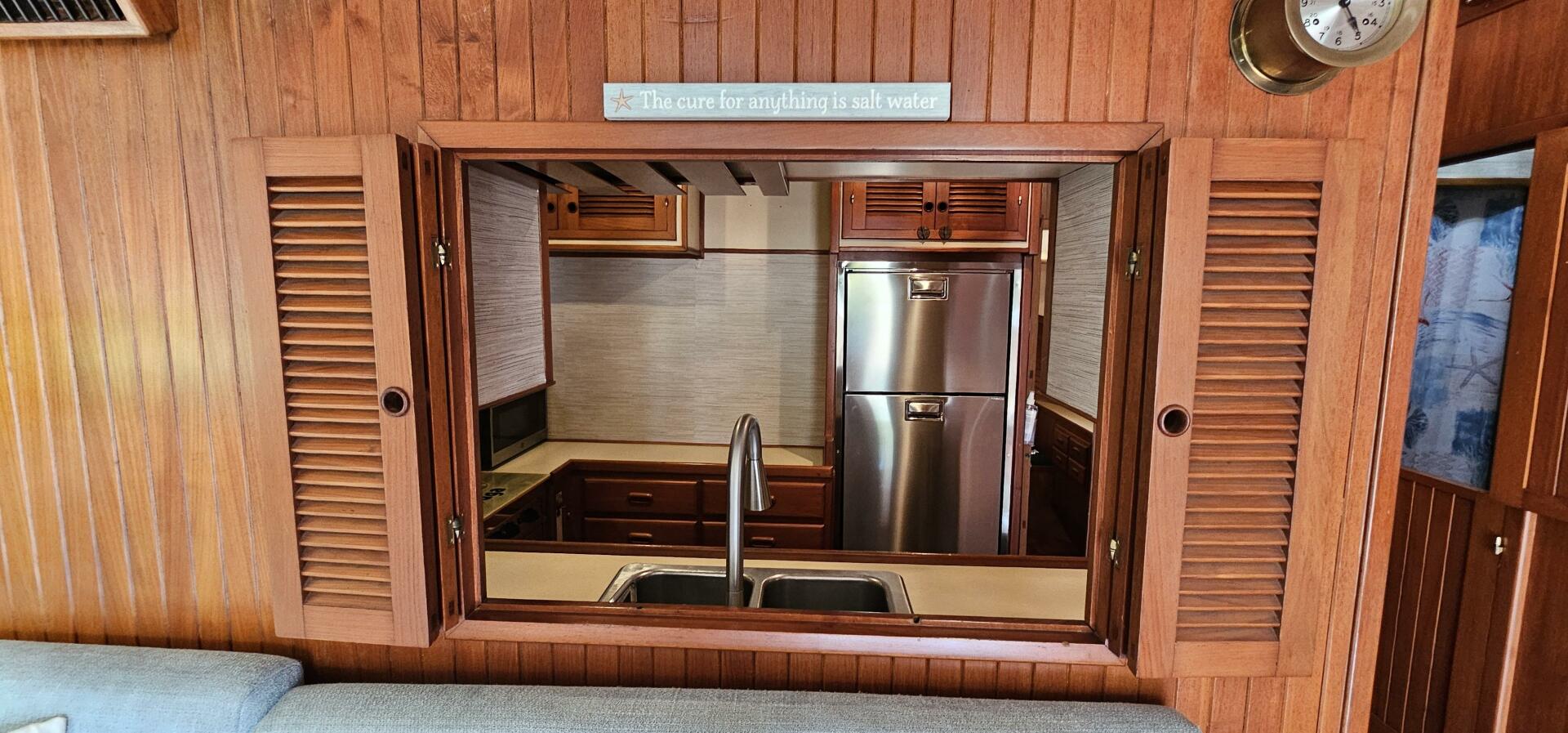

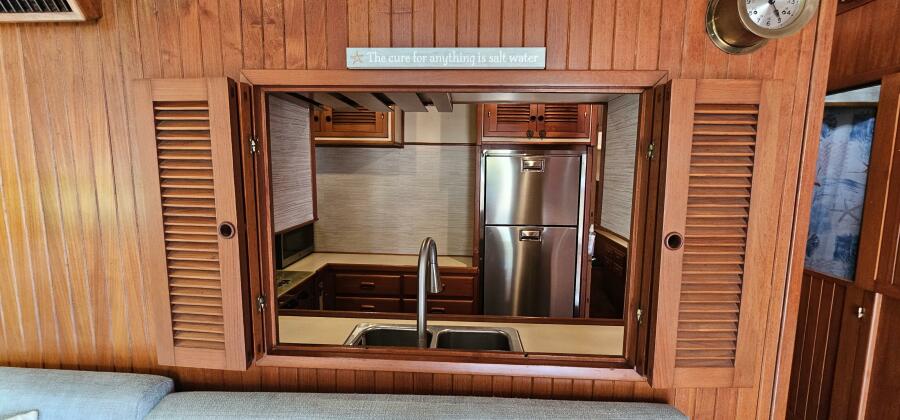

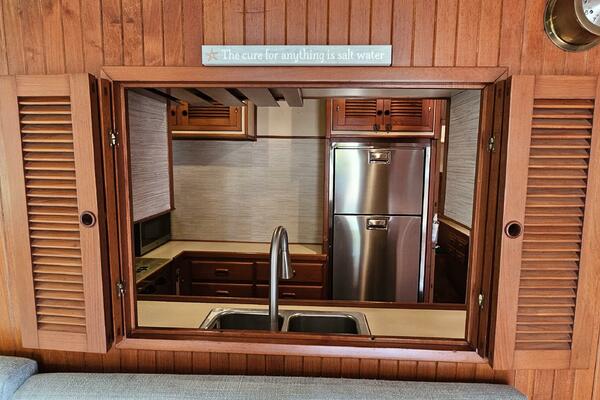

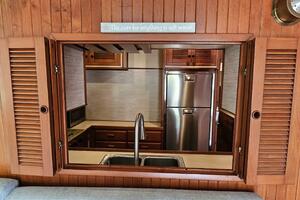

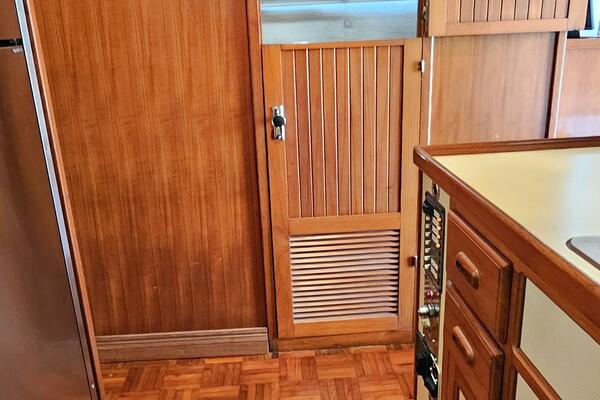

The U-shaped galley is located on the port side, forward of the saloon. It is very large and has an exceptional amount of cupboard, drawer and locker storage. In addition there is a teak louvered pass through to saloon. Deep double stainless steel sinks with new upgraded faucet with pullout nozzle. There has been cabinetry shelving added in the galley to provide additional storage.

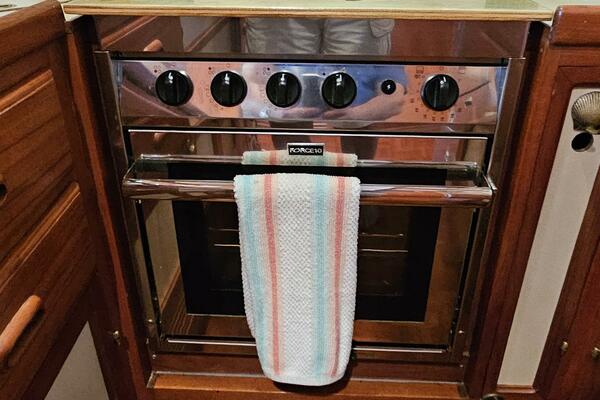

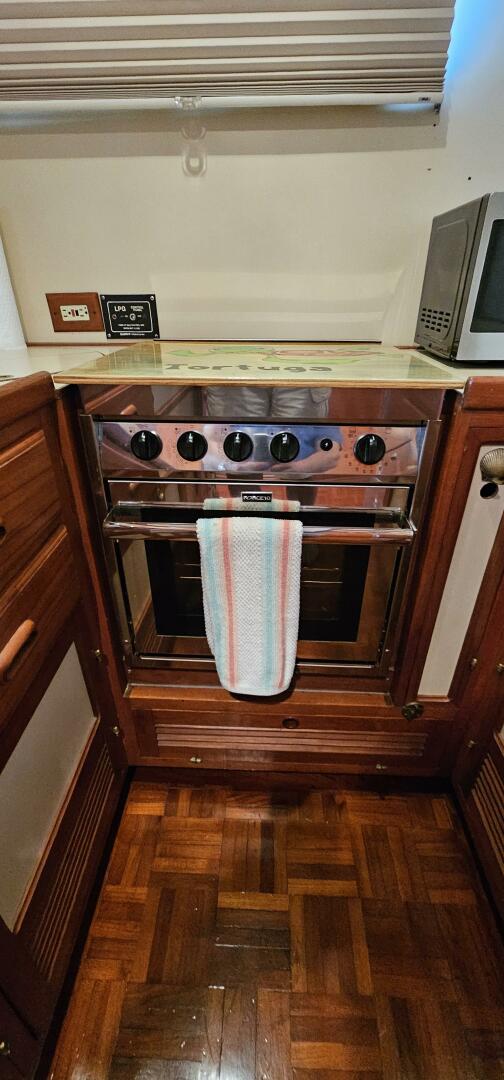

• 4 burner Force 10 oven/stove. Model 1988146 installed new

• GE Microwave – 700 watt model JEM3072SH2SS. Under cabinet moun installed New

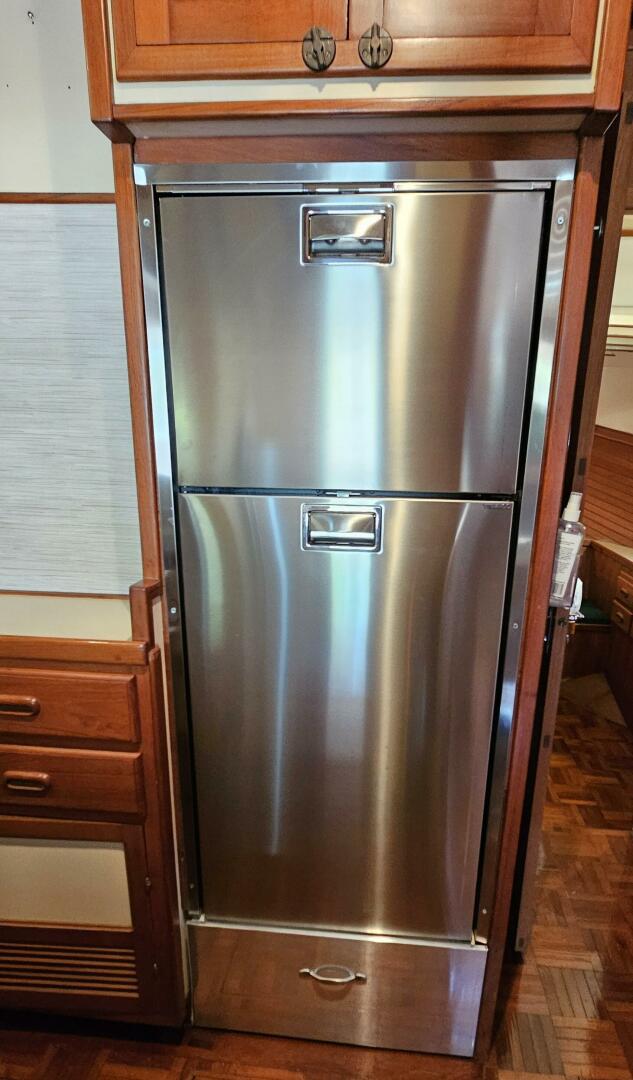

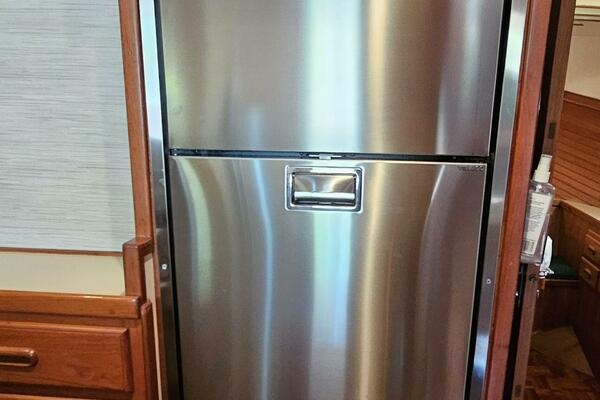

• New Refrigeration 2024 - Vitrifrigo – (NEW) DP2600 1XD4-F Refrigerator – AC/DC Connected.

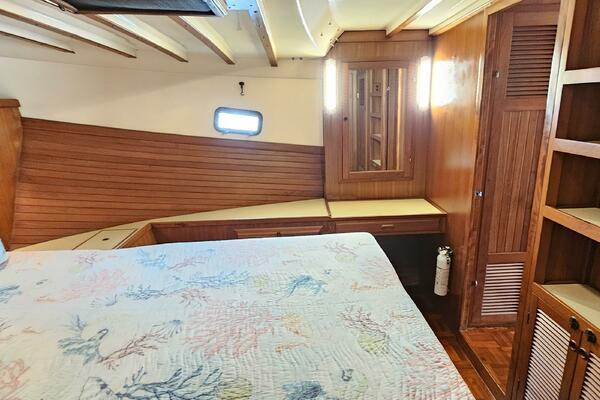

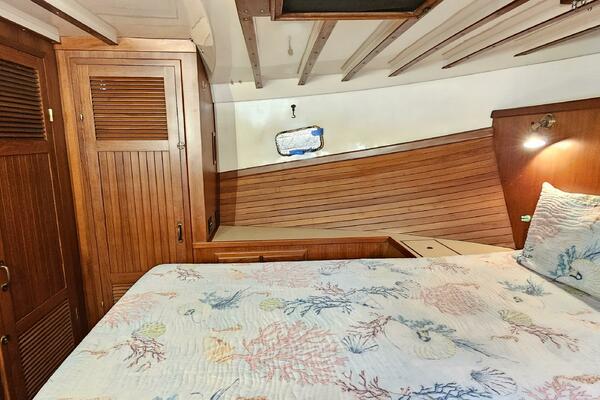

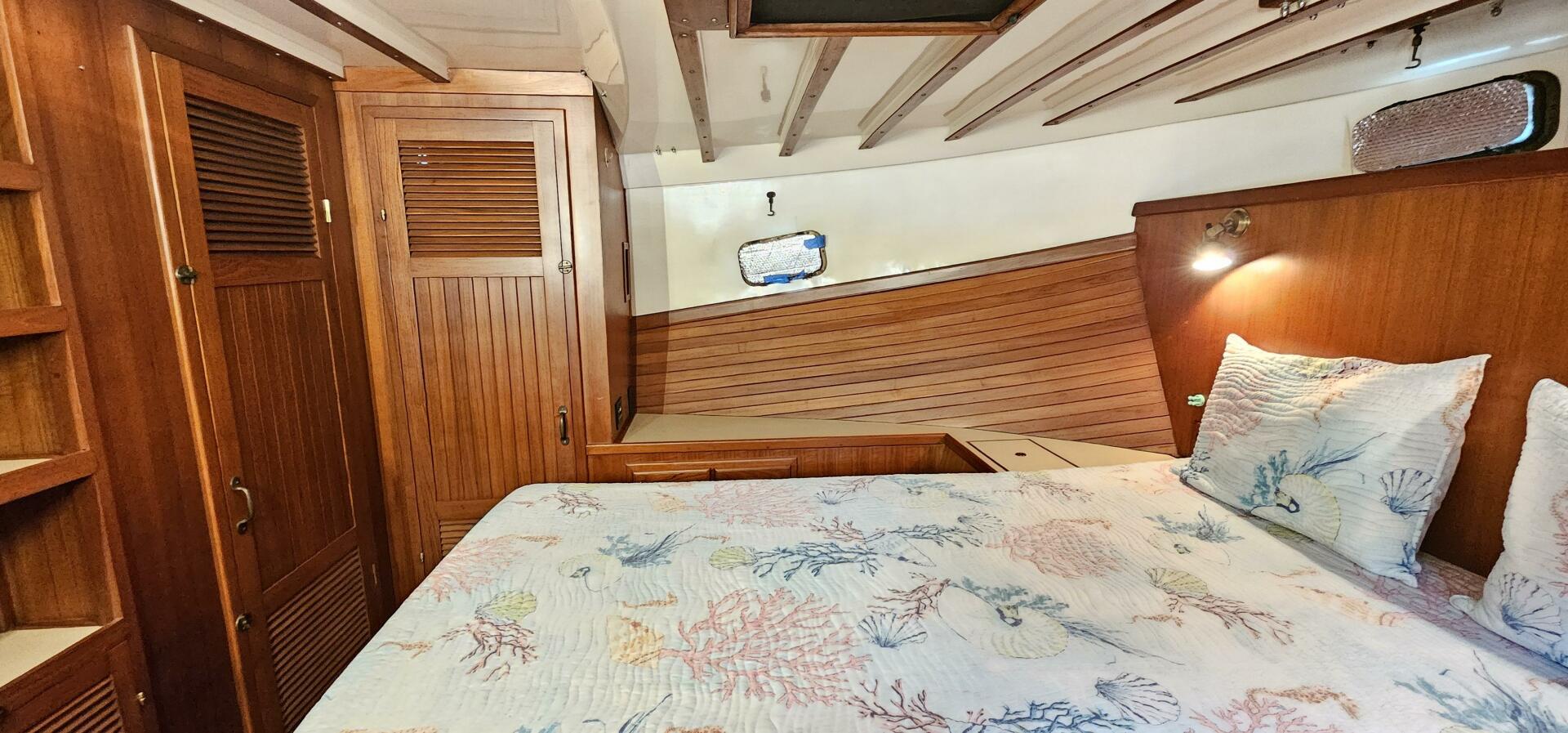

MASTER STATEROOM

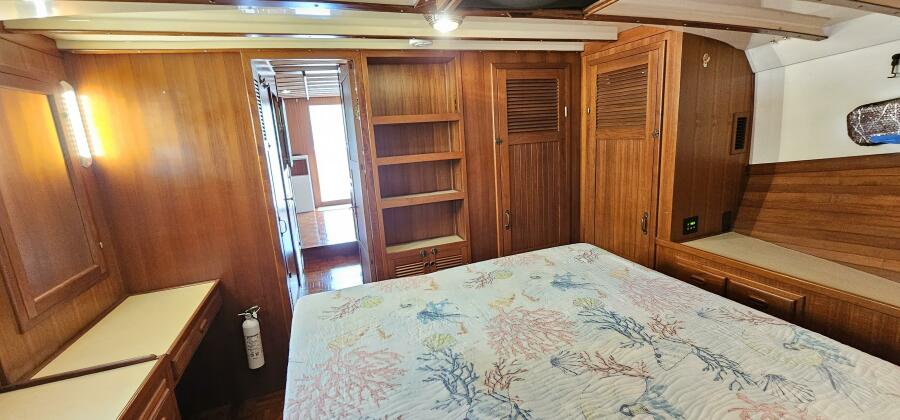

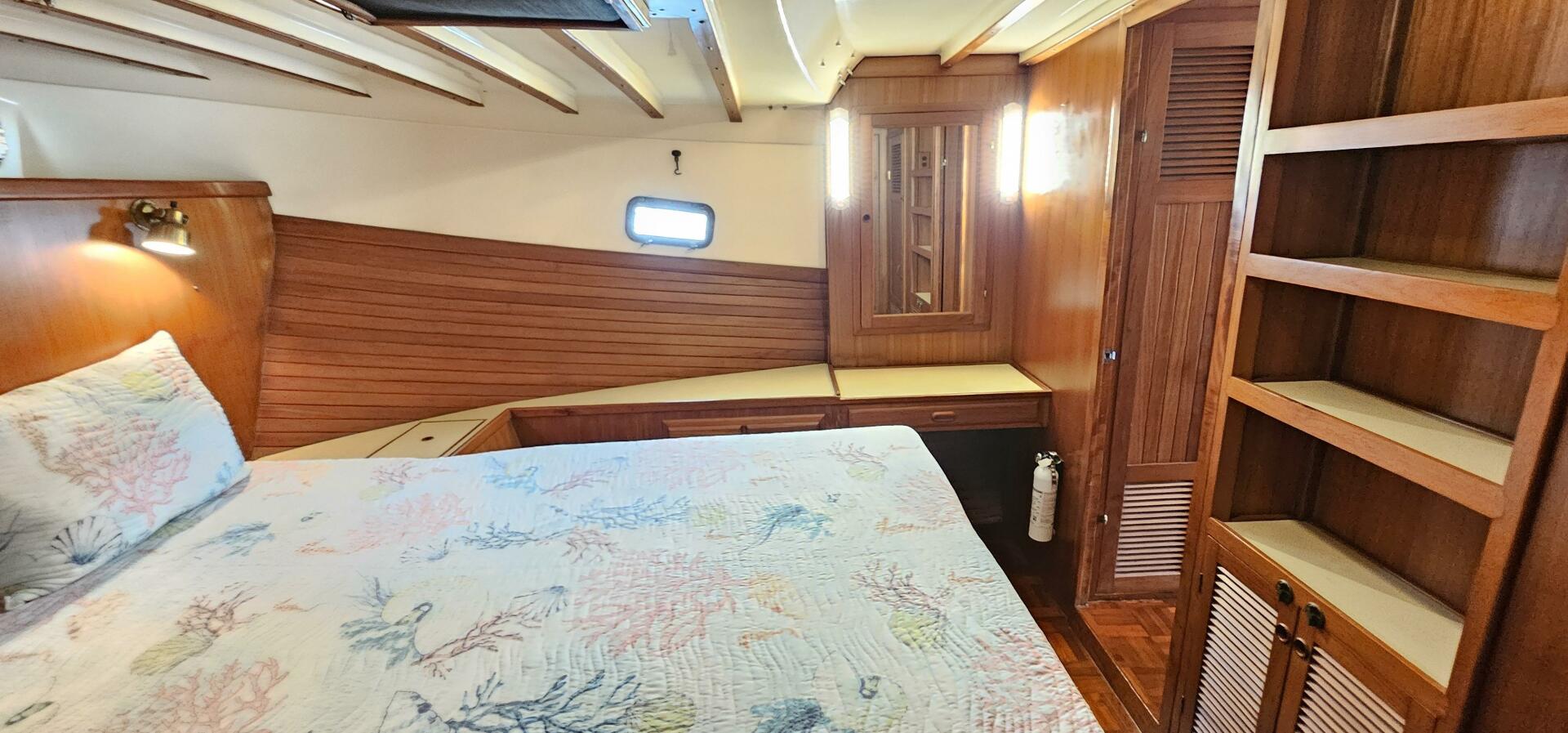

One of the outstanding features of the Krogen Manatee is the large stateroom, located forward.

• Queen size, center line berth

• Large "walk-in" size hanging locker

• Bulit-in bookcase, mirrored vanity and generous drawer storage.

• Four opening ports and a large opening hatch for great ventilation especially when you are on the hook.

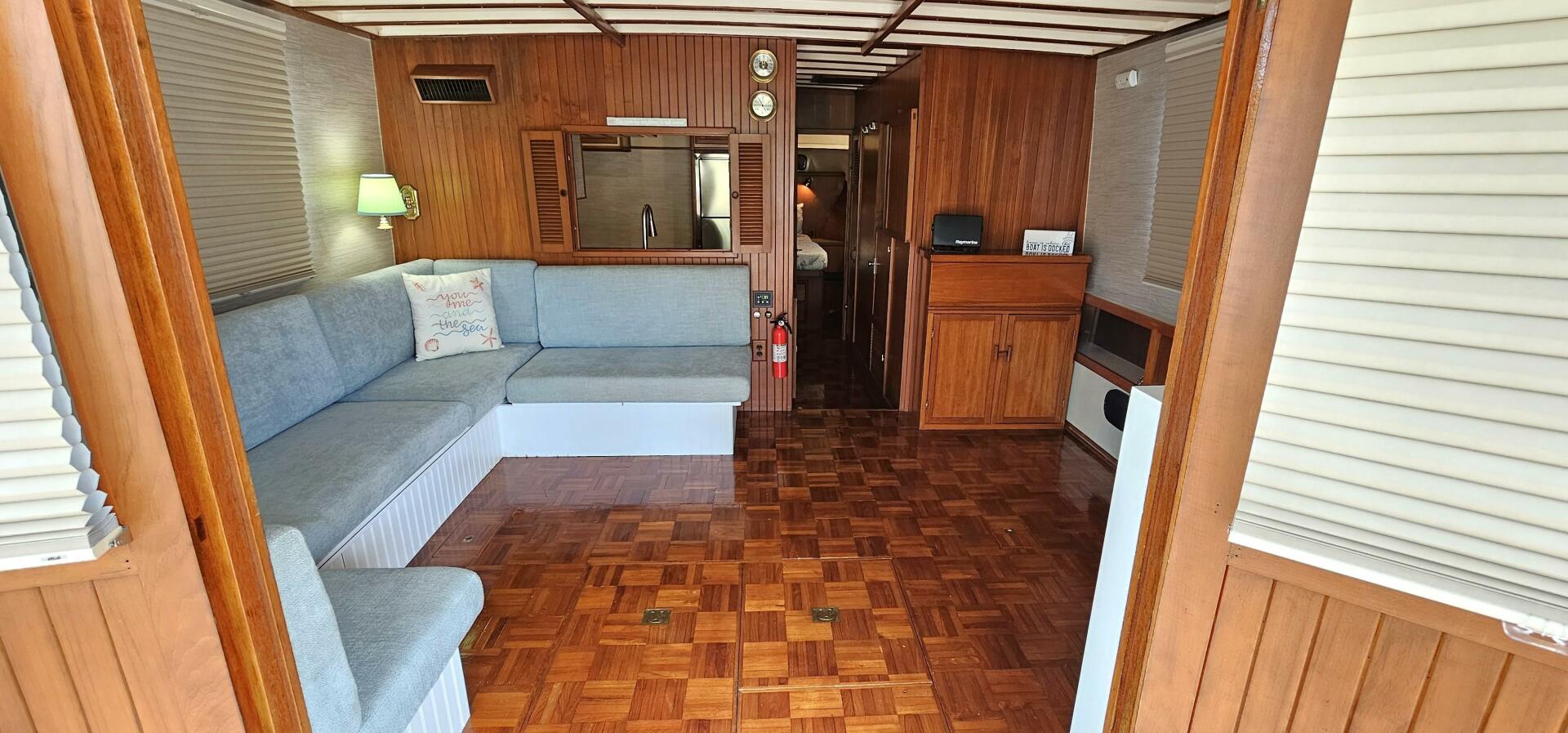

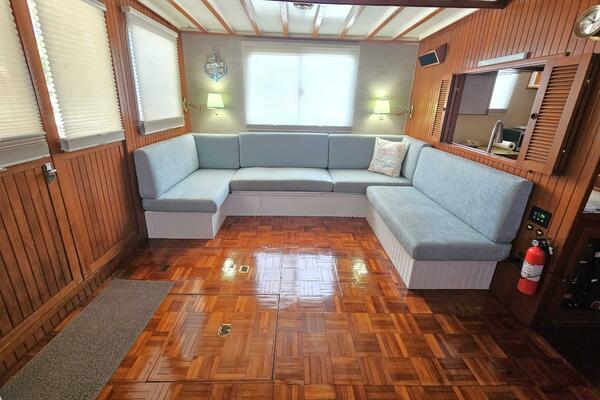

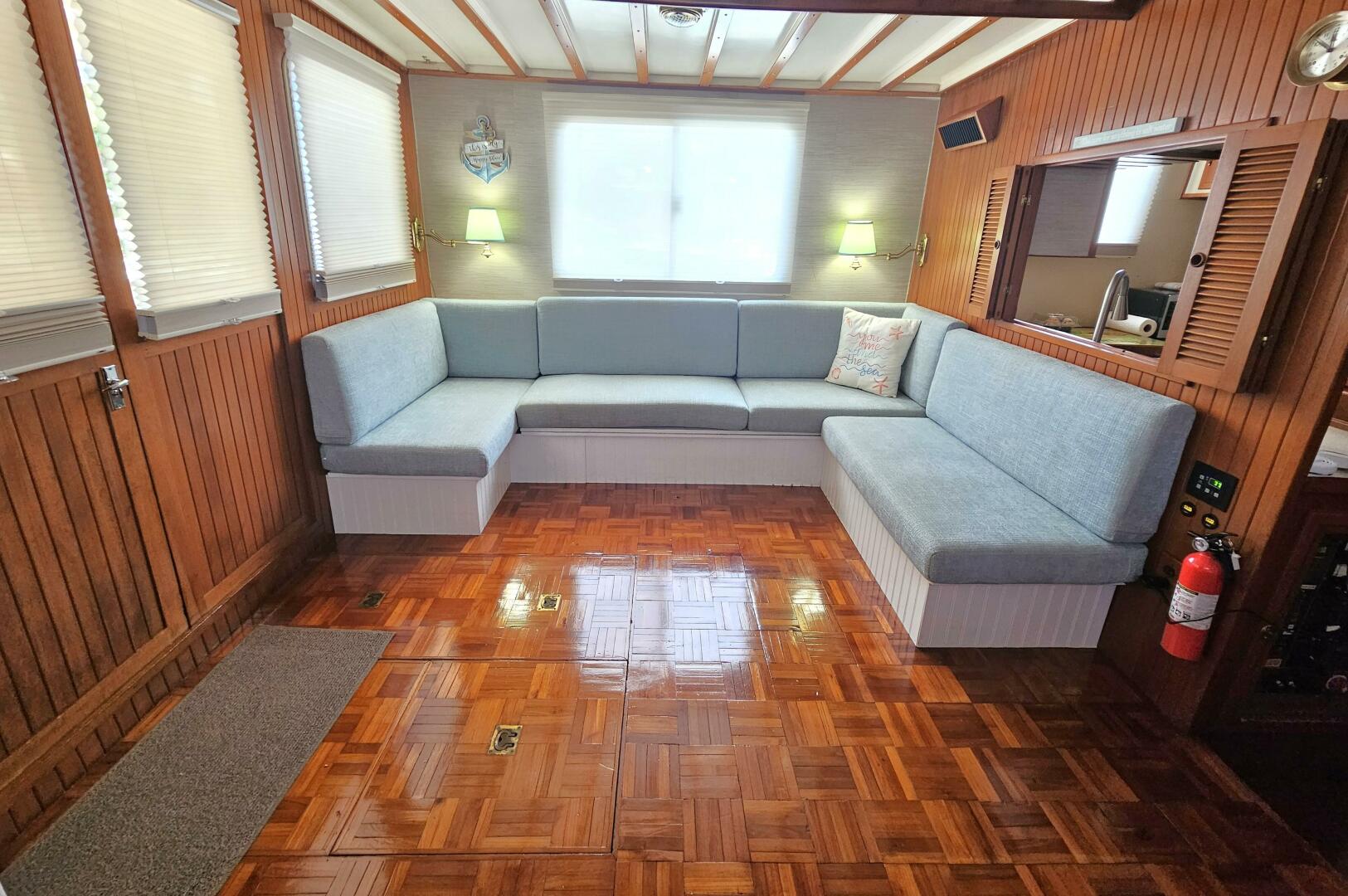

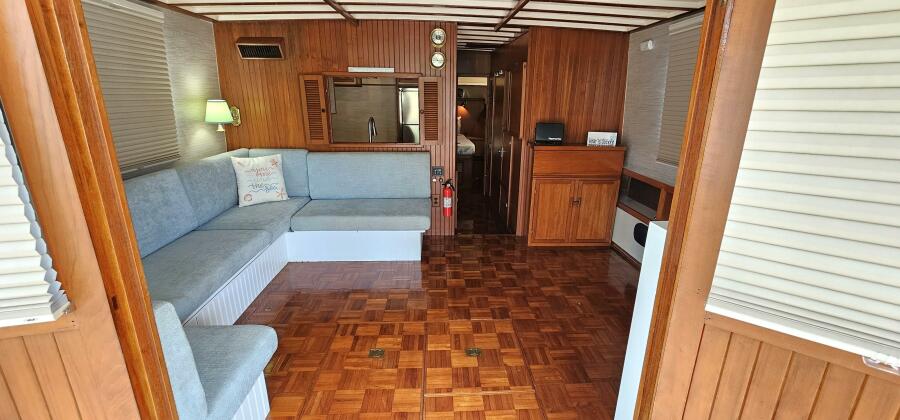

SALOON

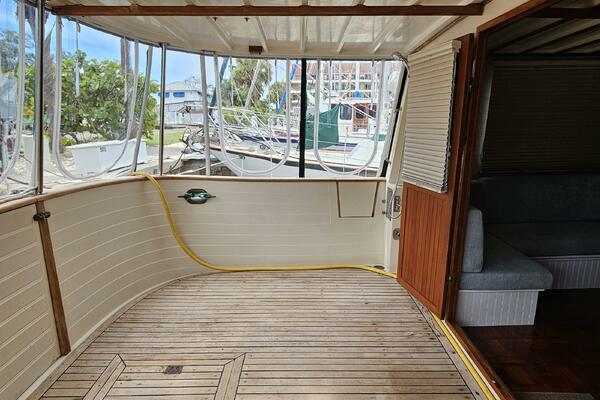

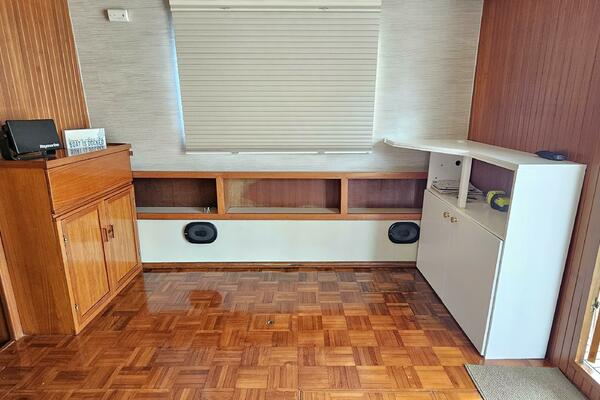

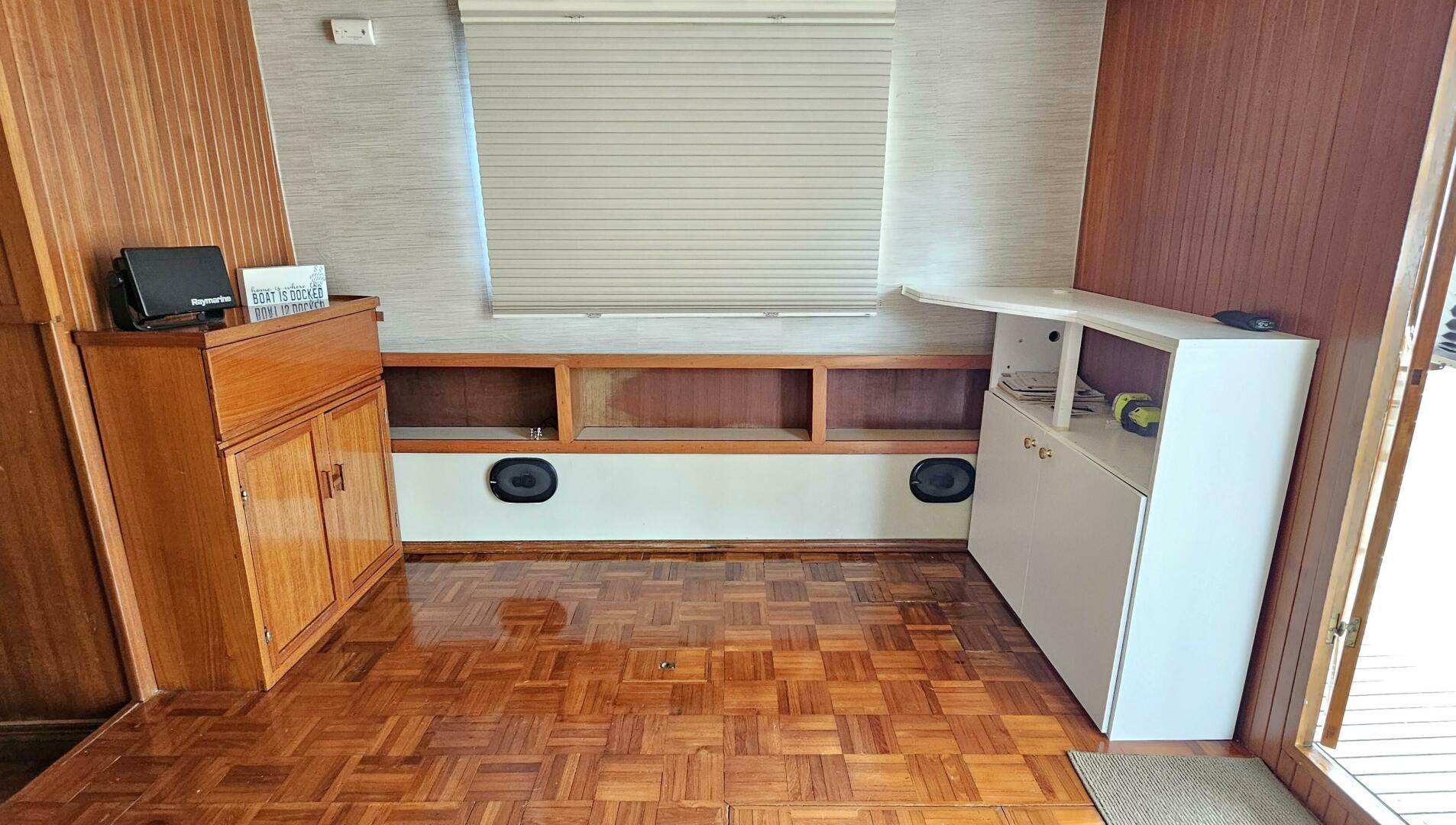

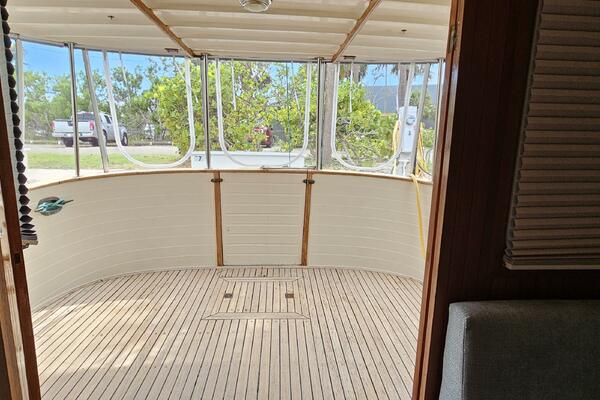

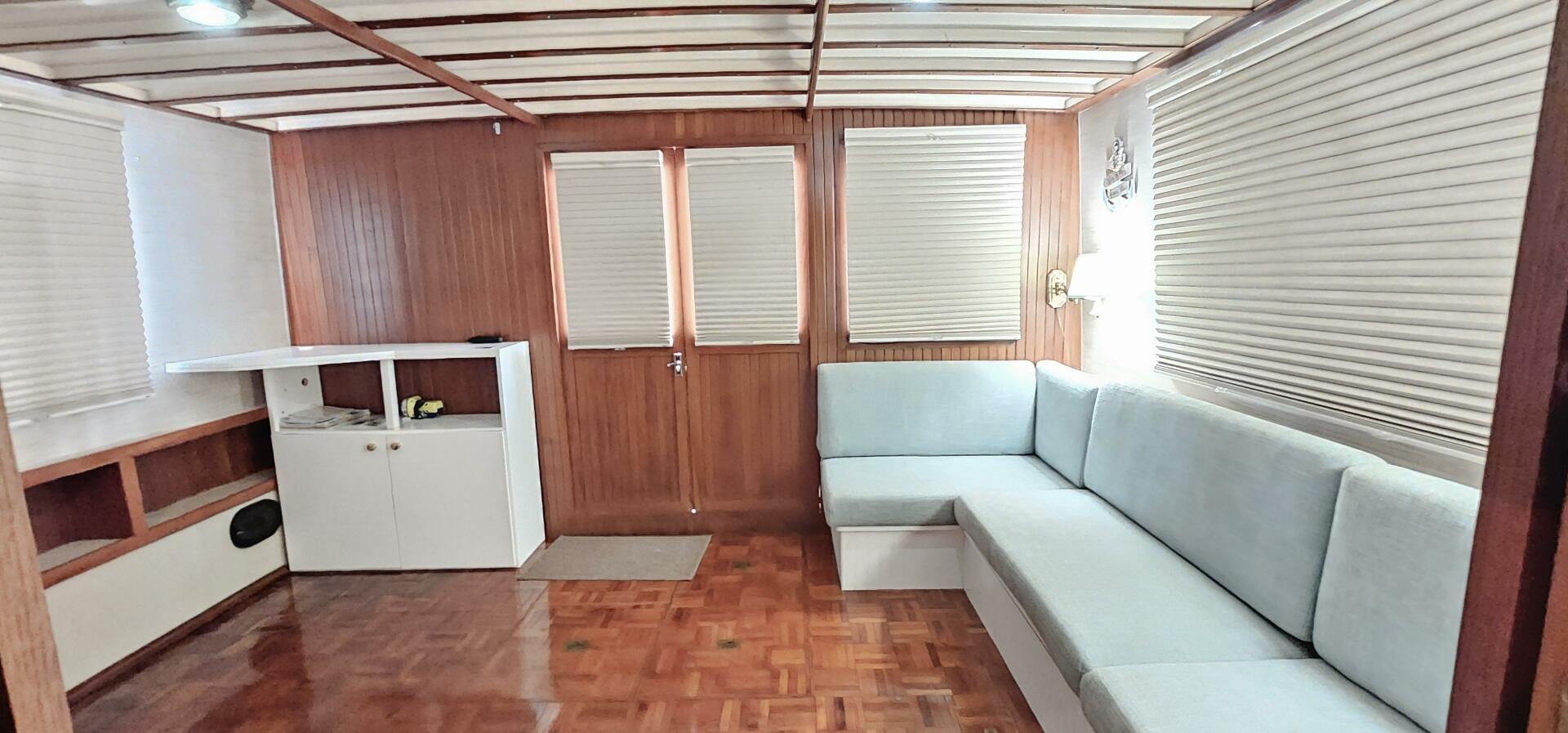

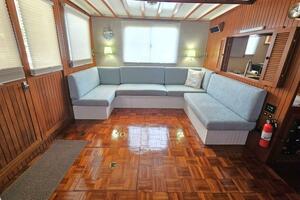

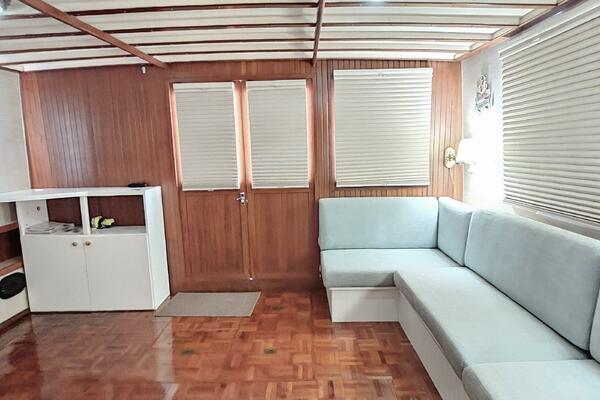

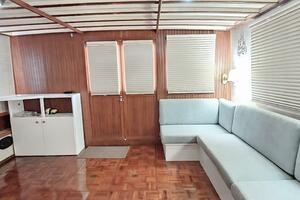

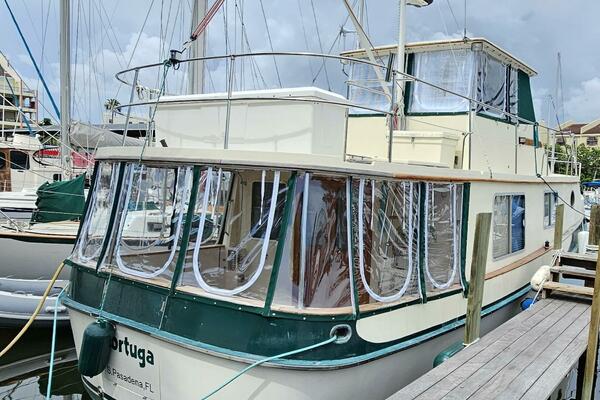

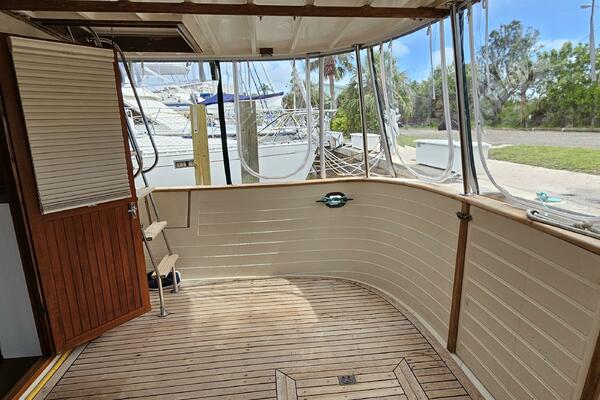

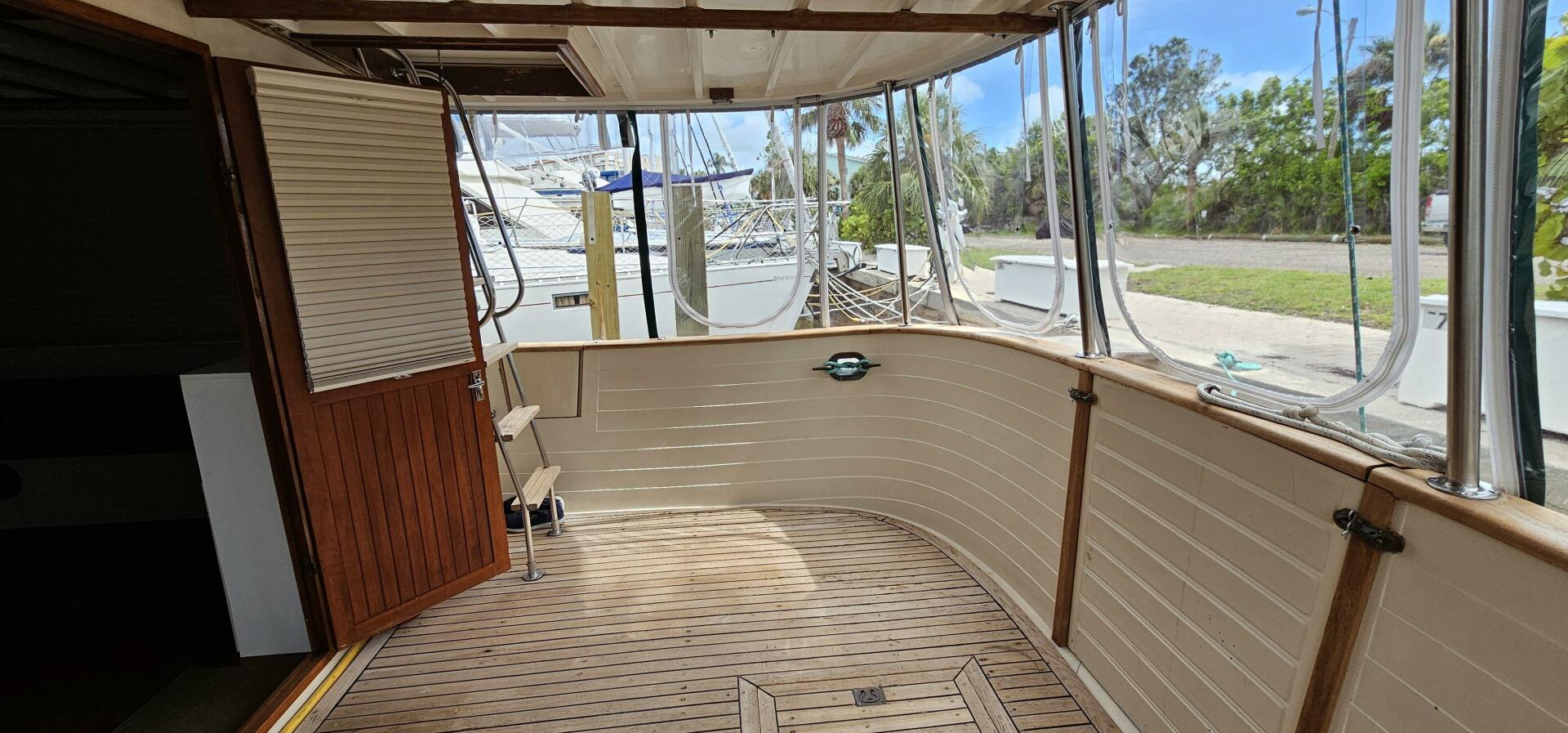

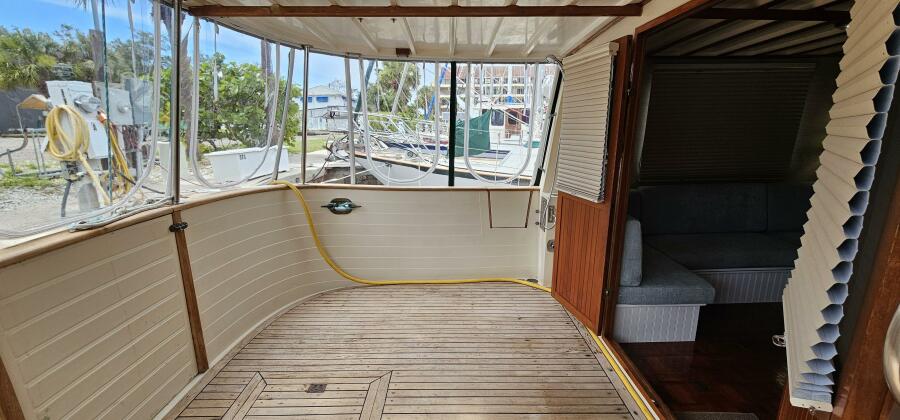

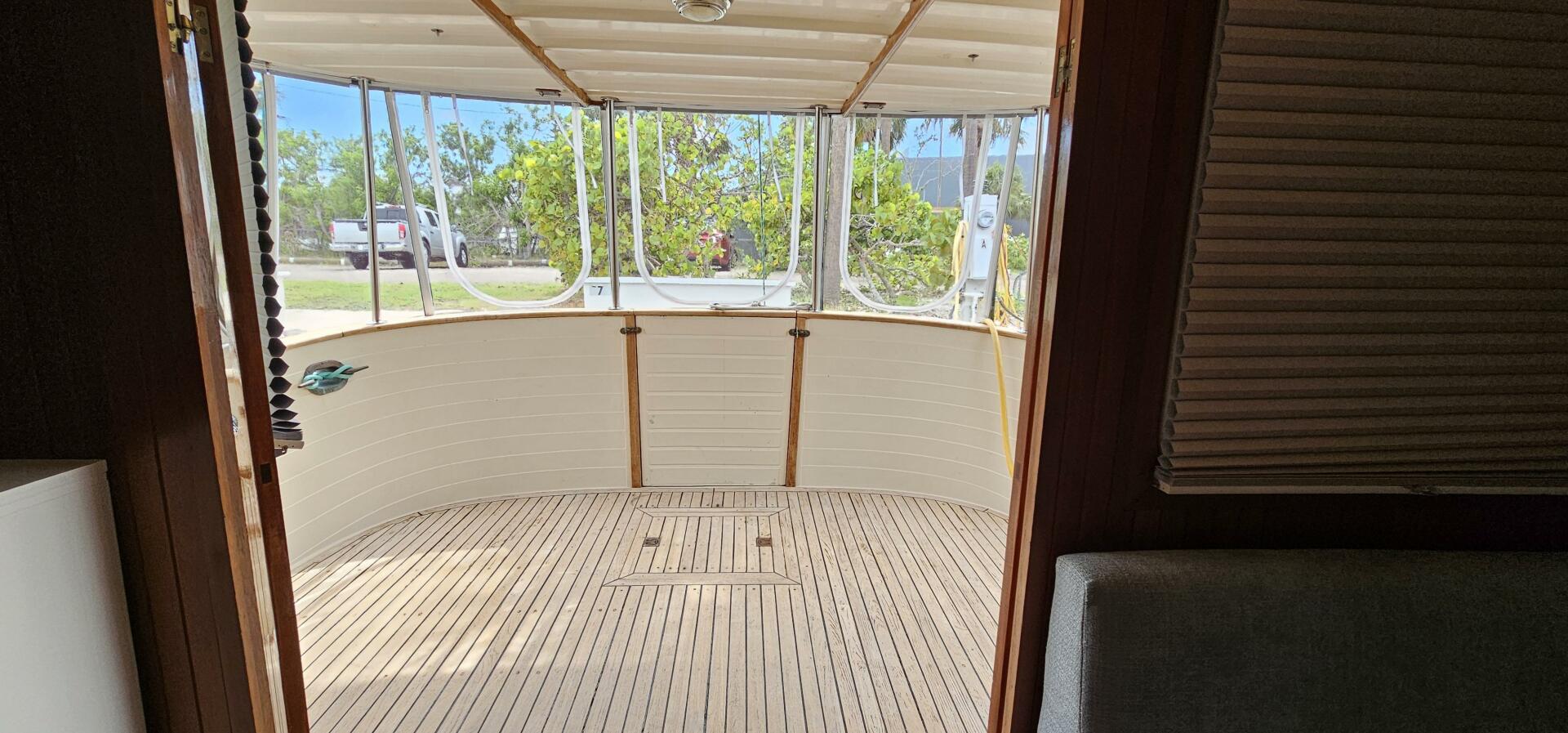

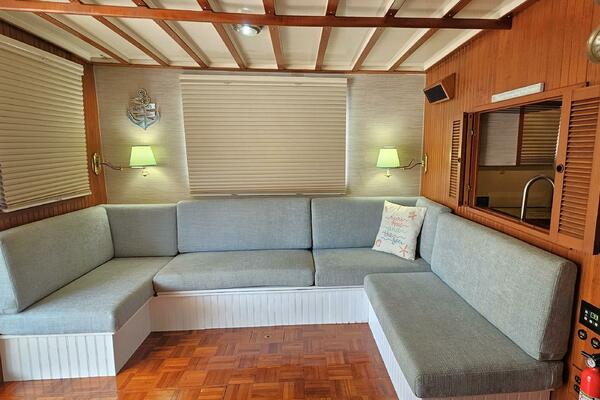

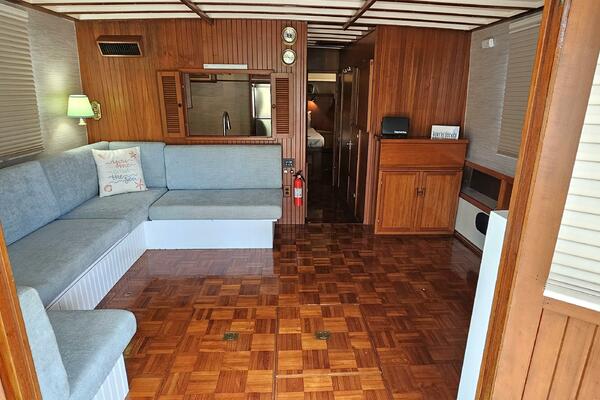

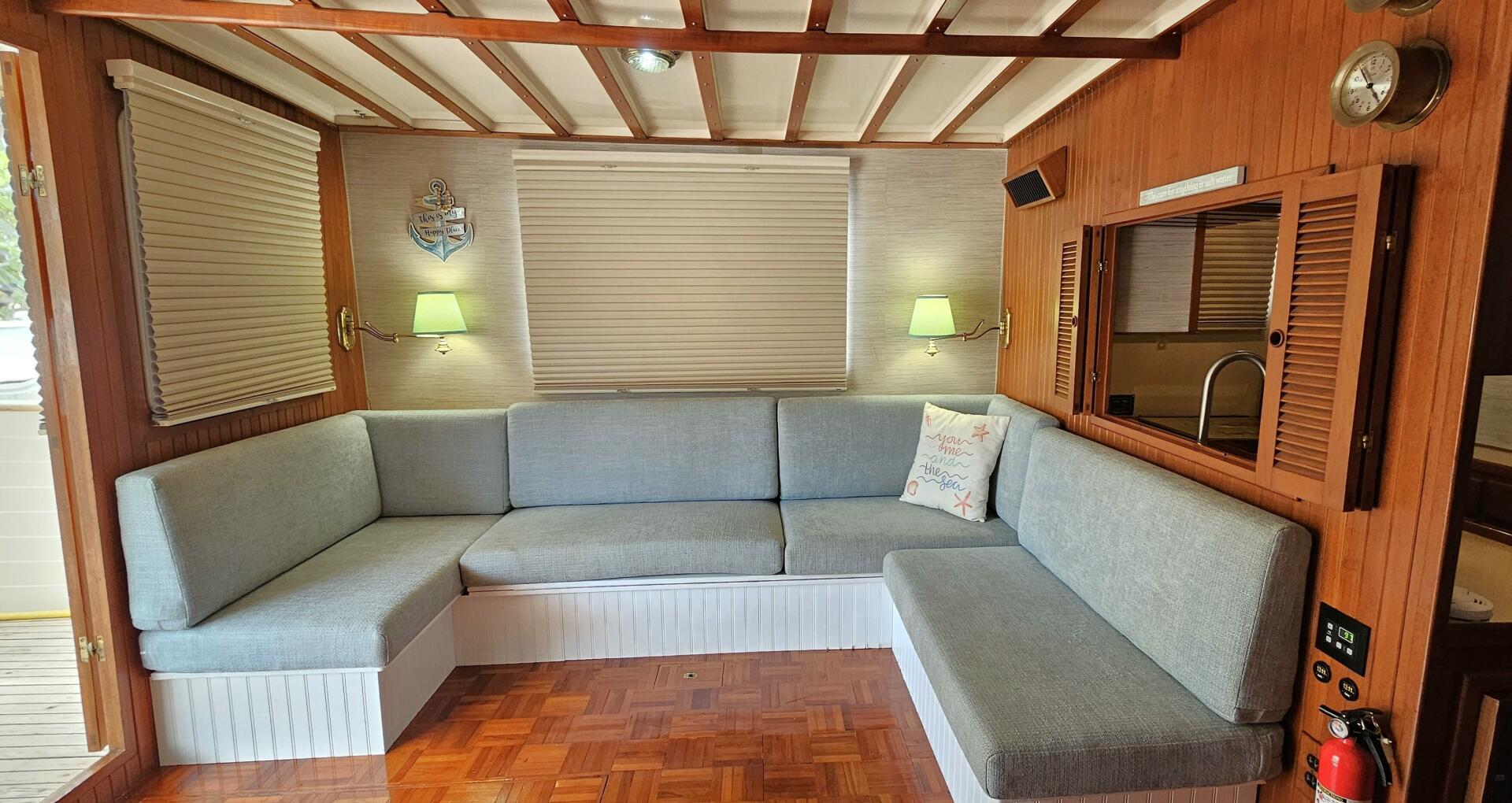

The Saloon is entered through double teak doors from a fully covered large aft deck. Aft deck fully enclosed with eisenglass/screen panels. It features a built-in U-shaped settee to port with ample storage. The starboard is open, allowing for 2 comfortable chairs and a small table. There are large opening windows with custom mini blinds port, starboard, aft and on doors. Settee modified to convert to larger berth

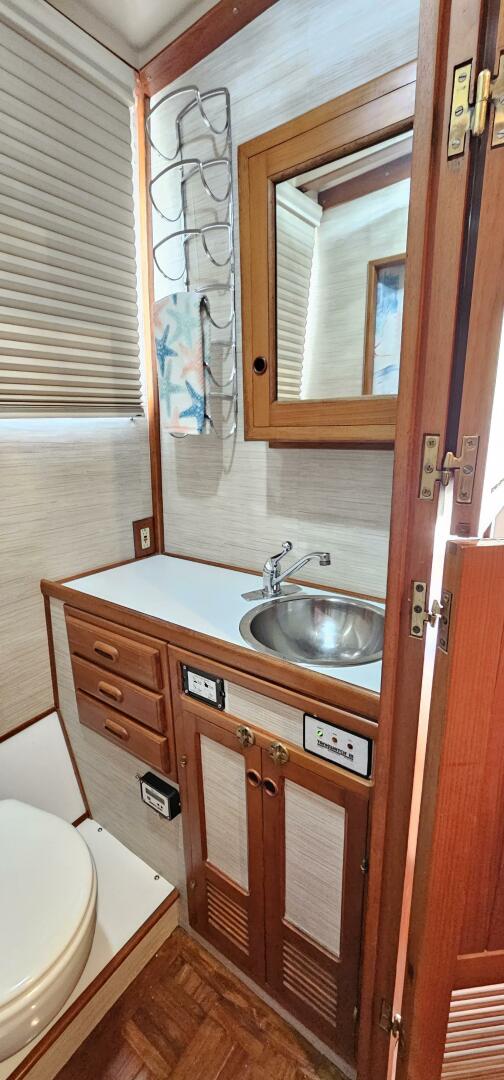

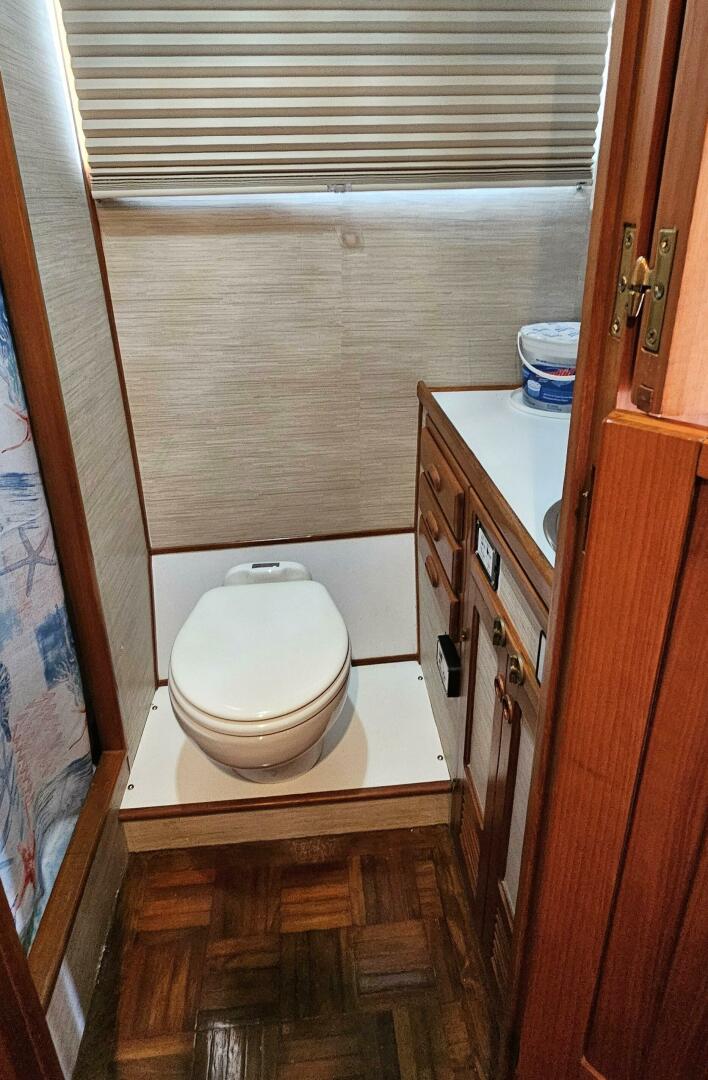

HEAD

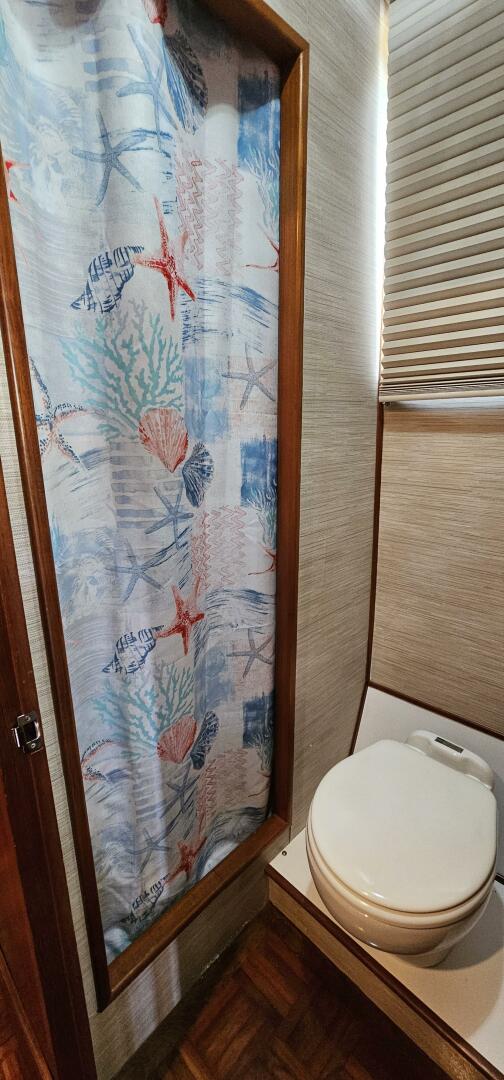

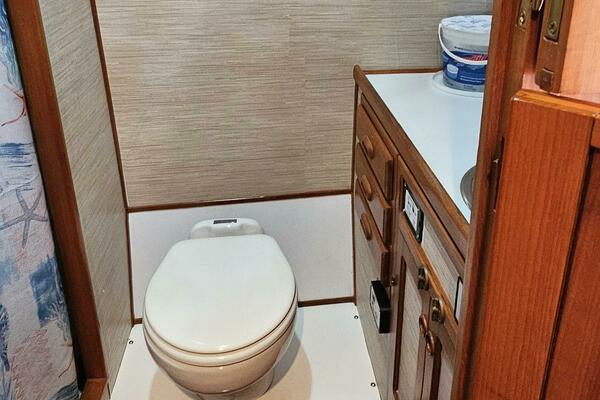

The head is located to starboard, opposite the galley. It includes a large separate stall shower and a large opening window and a Dutch door for ventilation. Raritan Elegance electric marine toilet system. This is connected to either a 30-gallon holding tank or a Raritan Electro scan waste treatment system, USCG certified Type I MSD. That system alone is a $10,000 dollar upgrade

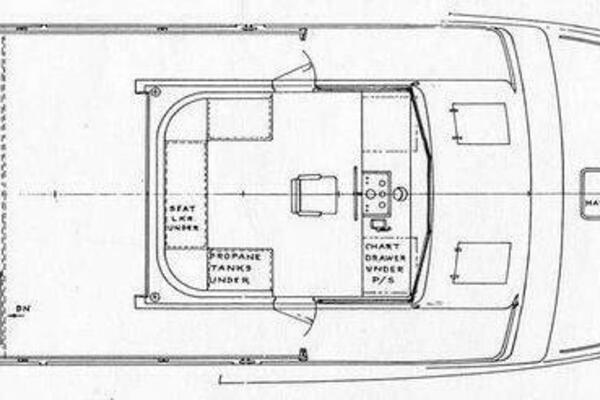

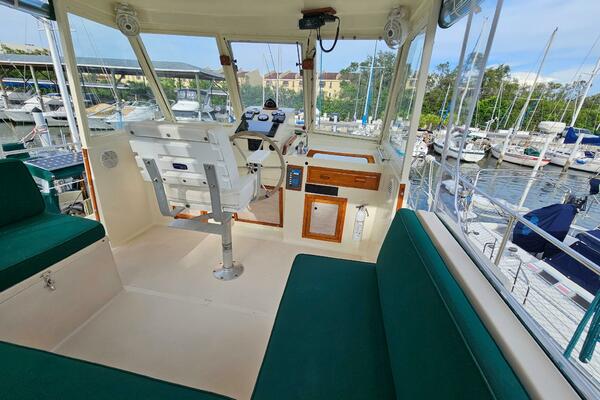

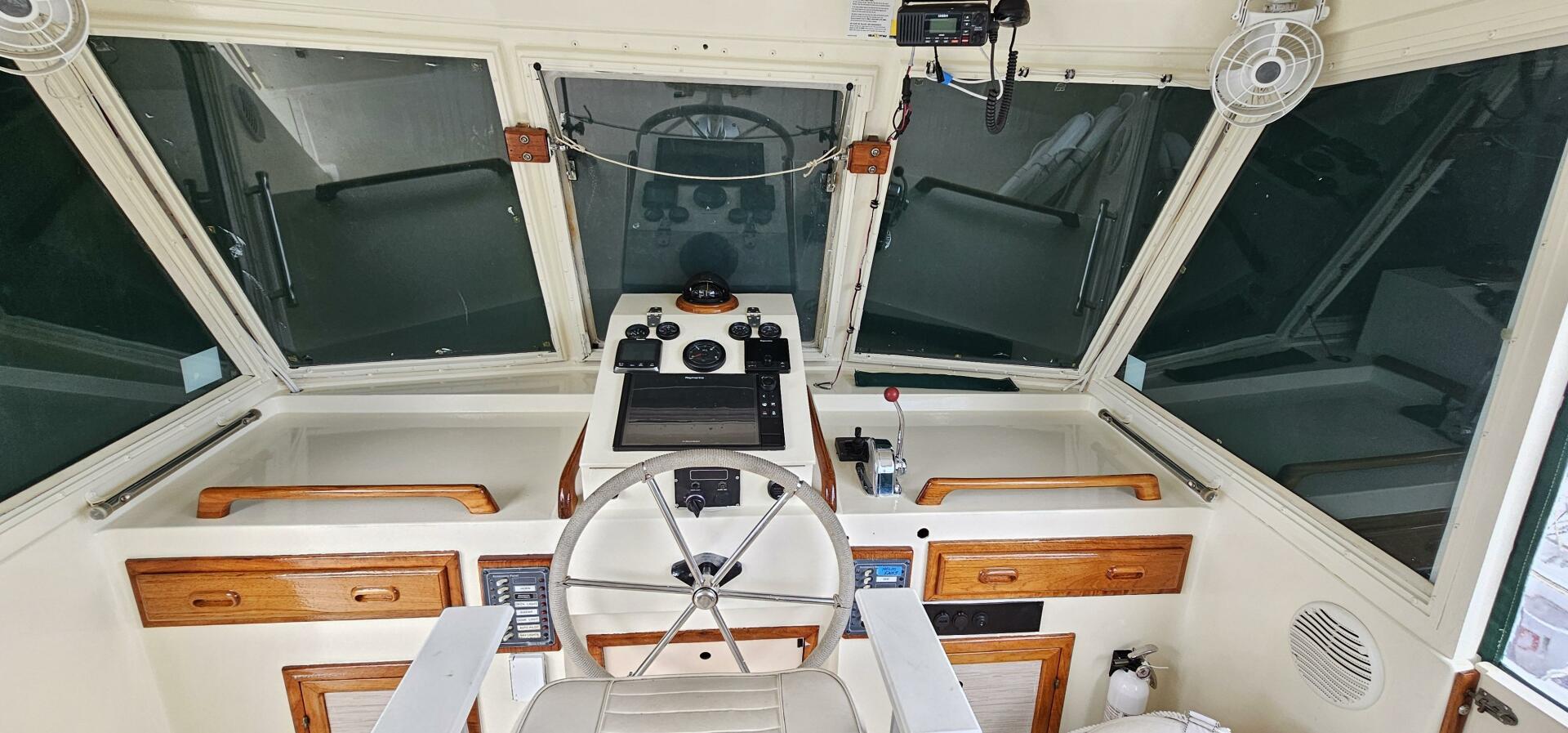

PILOTHOUSE

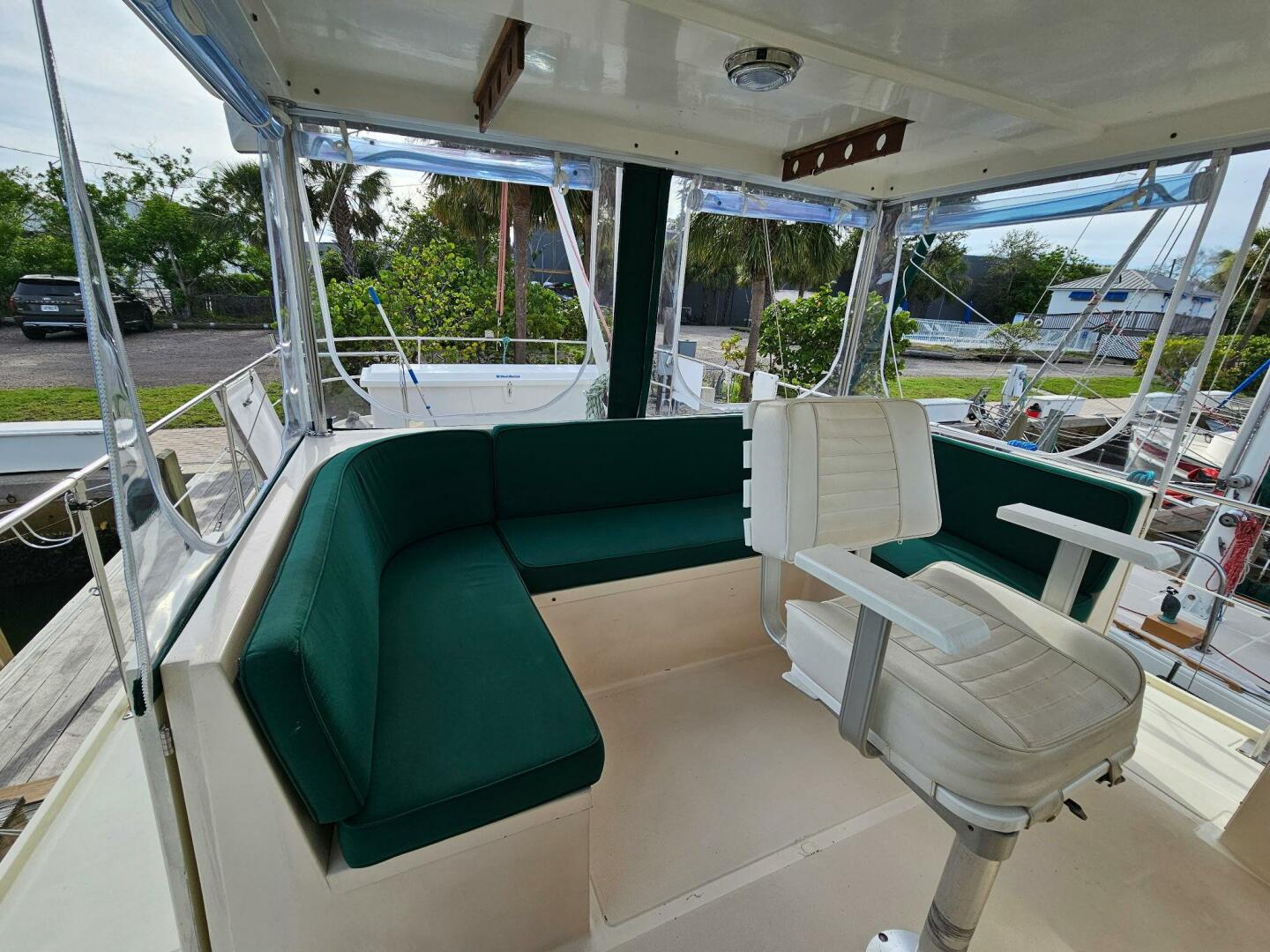

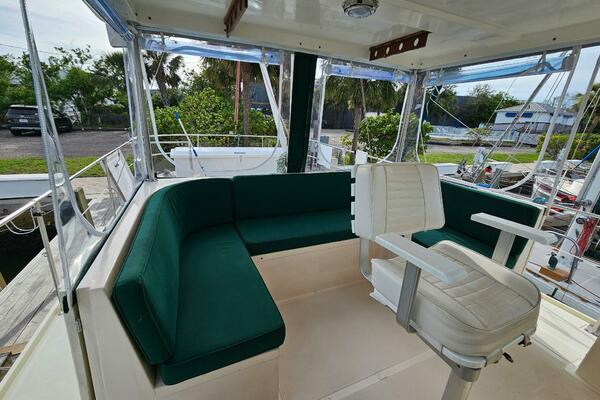

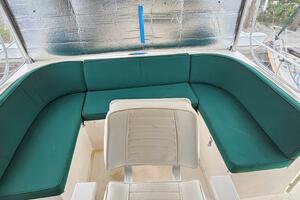

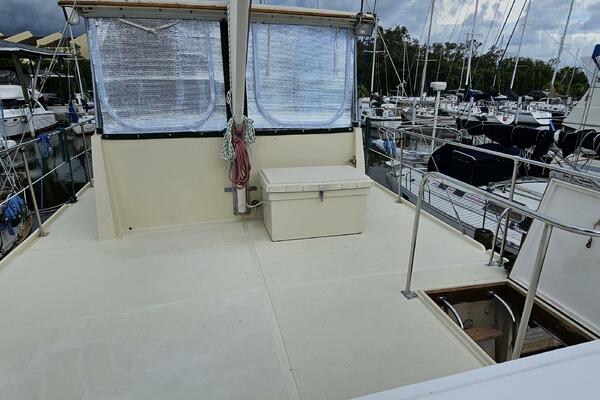

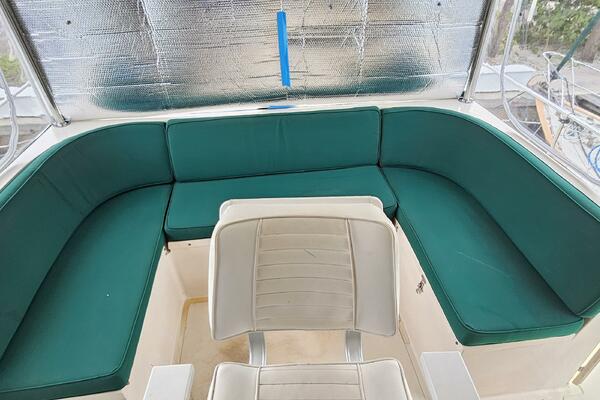

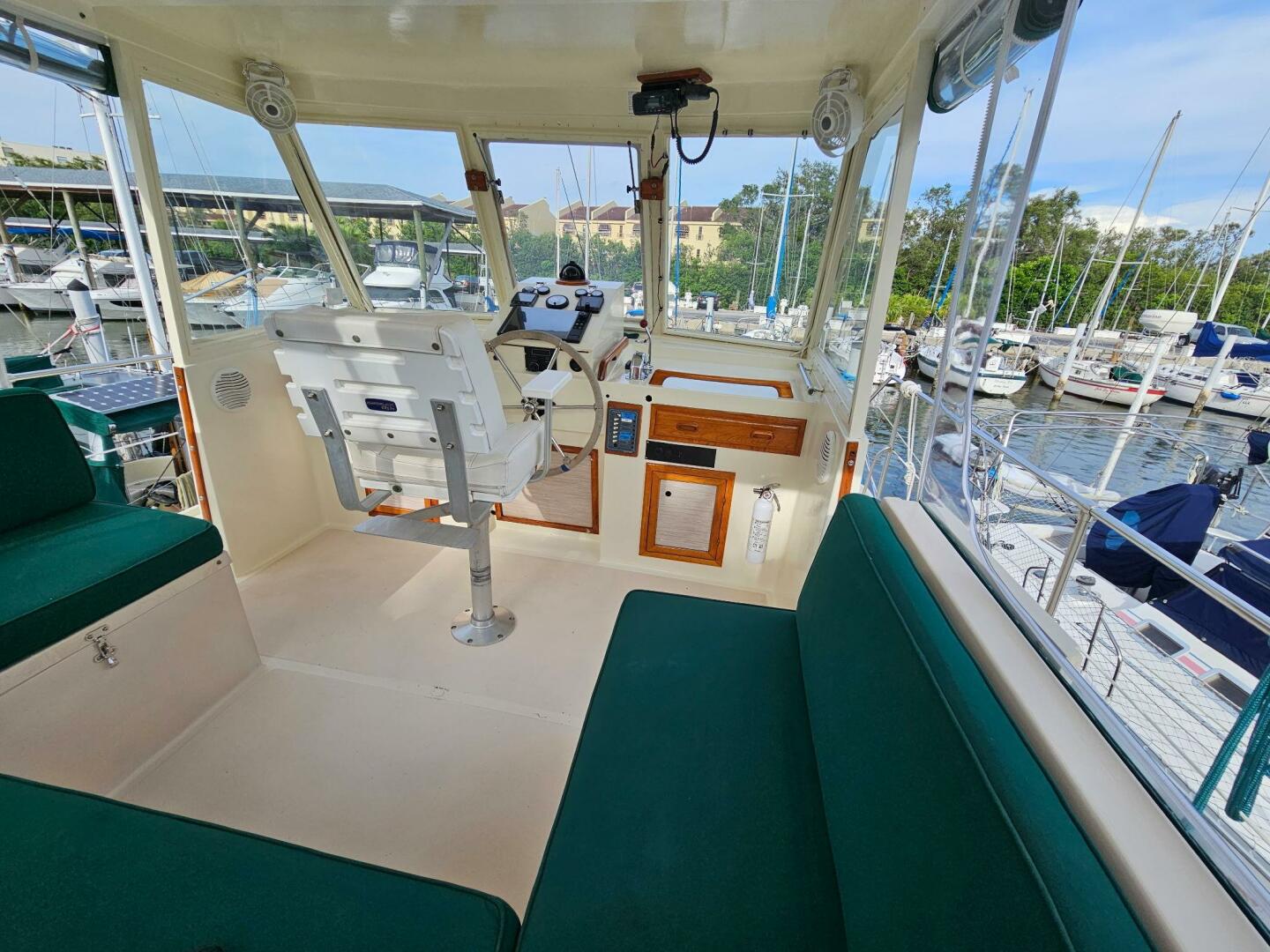

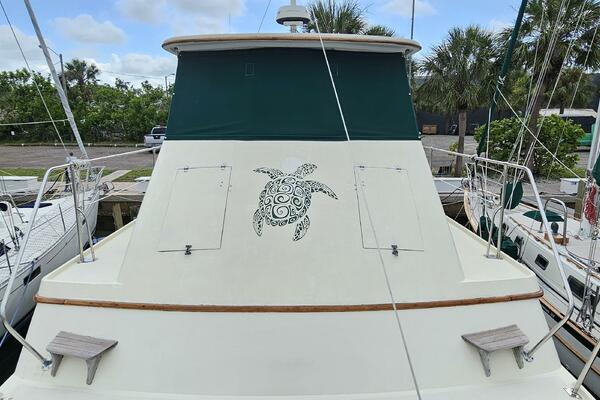

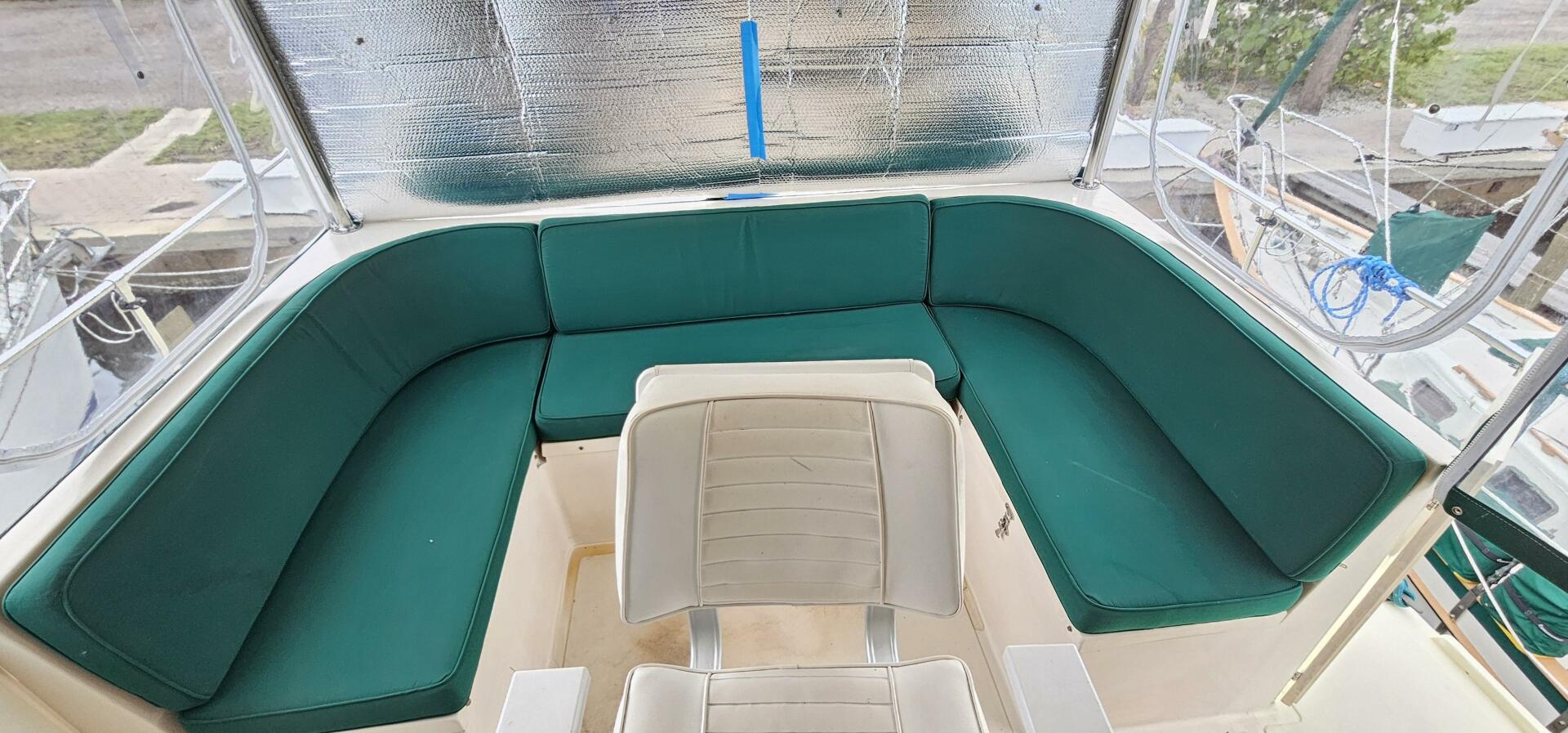

The pilothouse on the Manatee is located on the boat deck, and offers 360-degree visibility. It is completely enclosed with Lexan windows not only for the forward facing windows but on the sides and rear or the pilothouse as well. There are side deck doors port and starboard The settee converts to a double bed for an additional berth. The center of the windshield also opens for ventilation. Aft part of pilothouse fully enclosed with eisenglass/screen panels

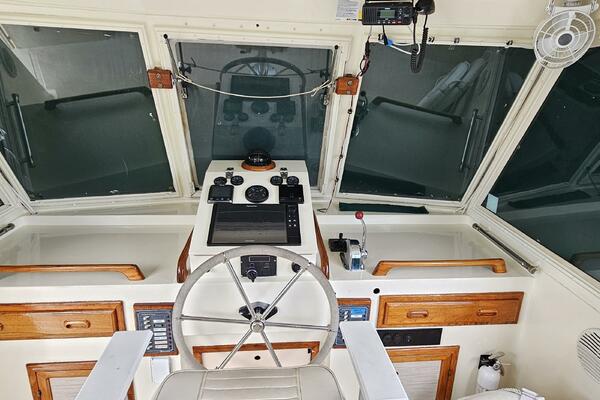

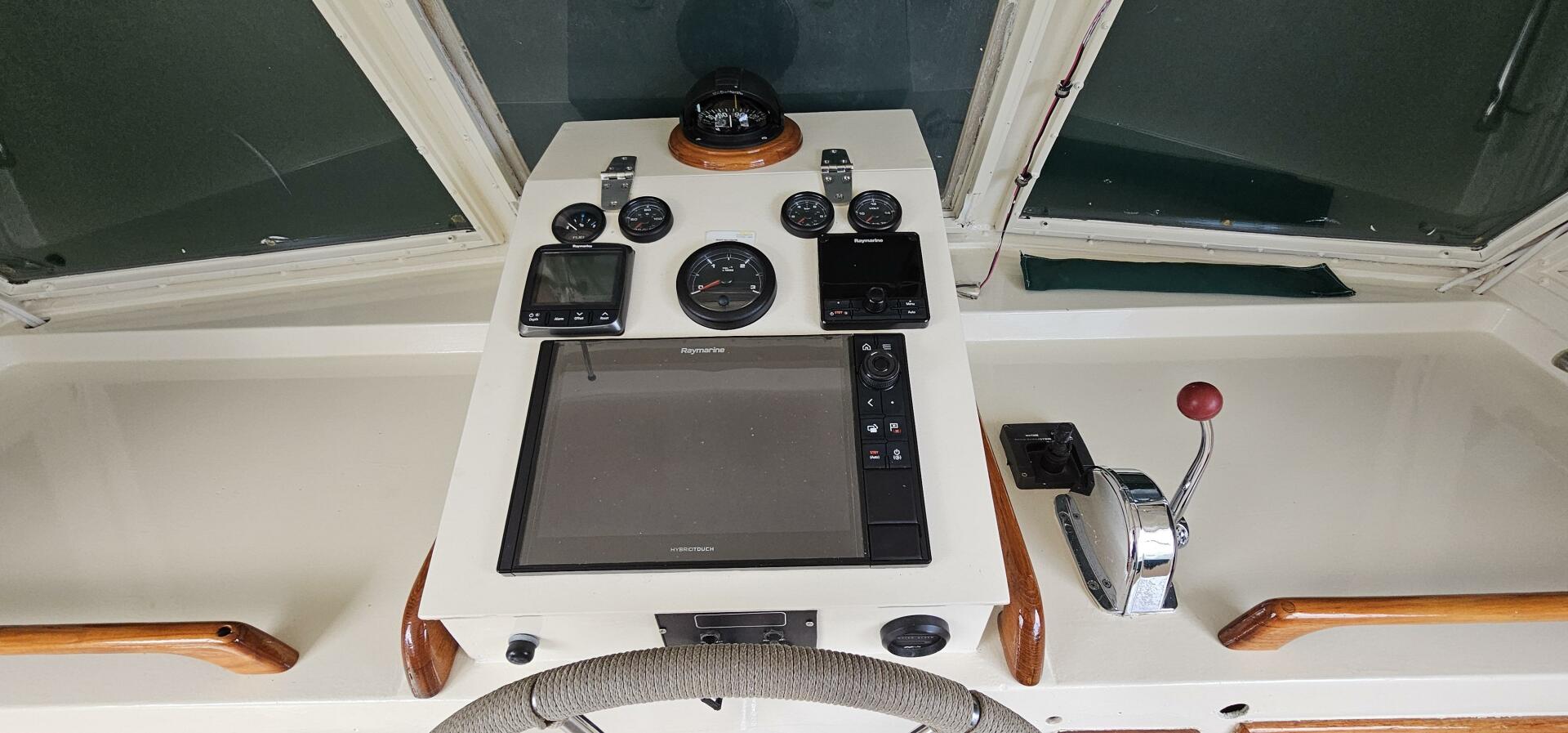

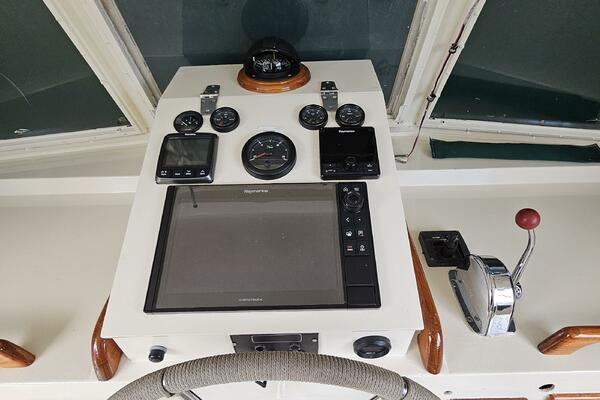

The Helm was completely rebuilt to include; replaced wiring, all new gauges installed, new throttle andgear cables (cable & linkage), upgraded Raymarine GPS Chart Plotter (Axiom Pro 12 RVX), teak railssanded and varnished, primer applied and painted with Pettit Topside Paint (Hatteras Off-White). All newcanvas/isinglass (with track) enclosures surrounding helm.

• NEW Raymarine GPS Chart Plotter (Axiom Pro 12 RVX) NEW (Linked to Raymarine Axiom 9E70366 in salon)
• NEW ISO Depth Instrument (0190031)
• NEW 5000 RPM TACH Black
• NEW 12V Voltage Gauge
• NEW 150 PSI Oil Pressure Gauge
• NEW 250F Temp Gauge NEWVDO Single Engine Box
• NEW Dual Device Start Kit
• NEW Drop Cable 32.8 ft
• NEW Canvas Enclosure (Helm Forward Window Cover)
• NEW Isinglass Enclosure with track (Setee Helm)

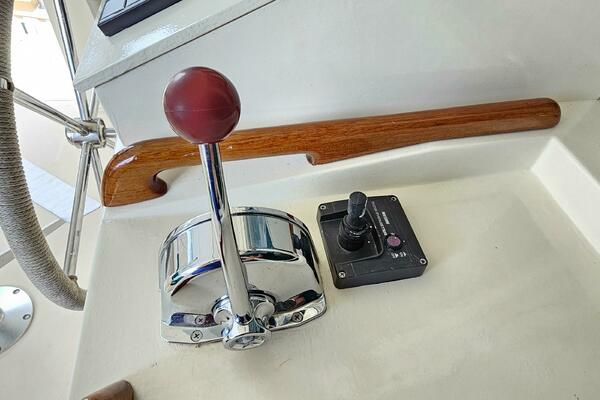

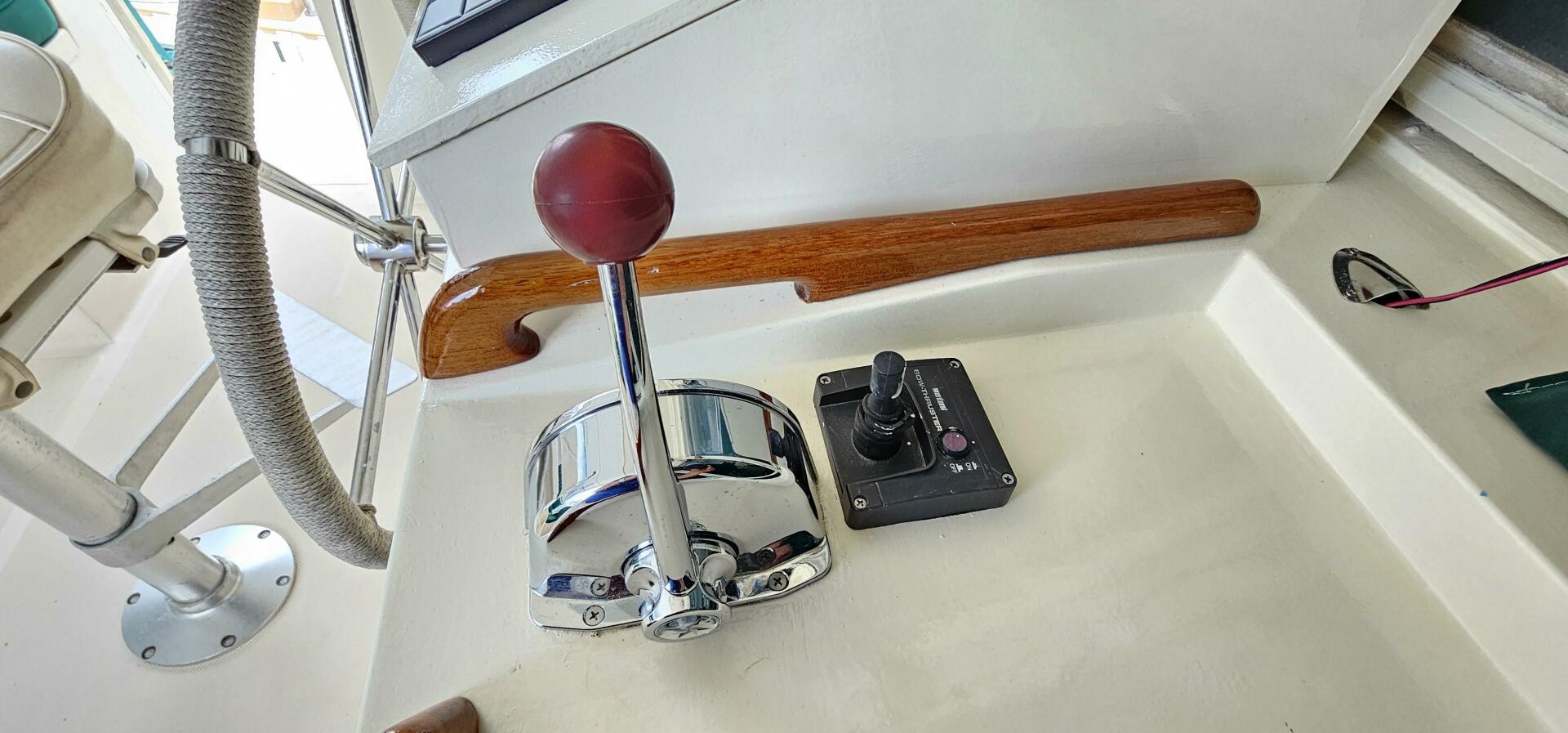

• NEW SeaStar Solutions Throttle (CH5310P)

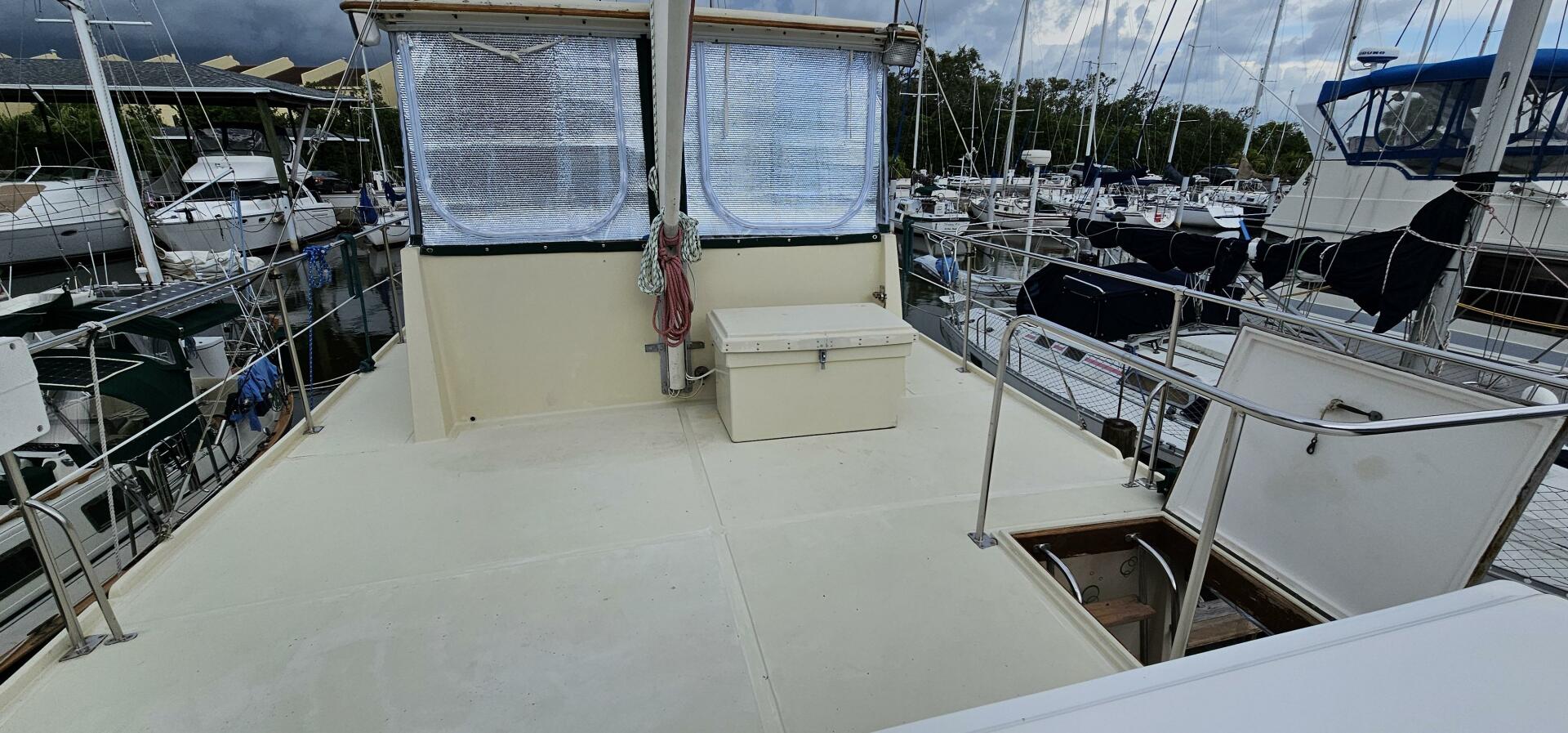

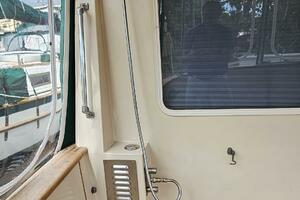

COCKPIT

• NEW Teak Doors – Removed, cleaned, sanded and Varnished
• NEW Hot and Cold Water Faucet

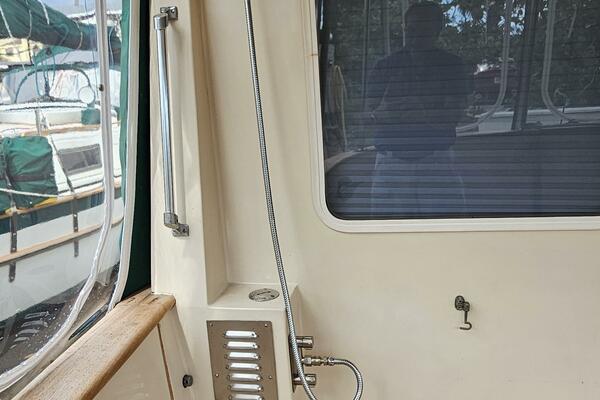

• NEW Fresh water shower
• NEW Isinglass Enclosure with track

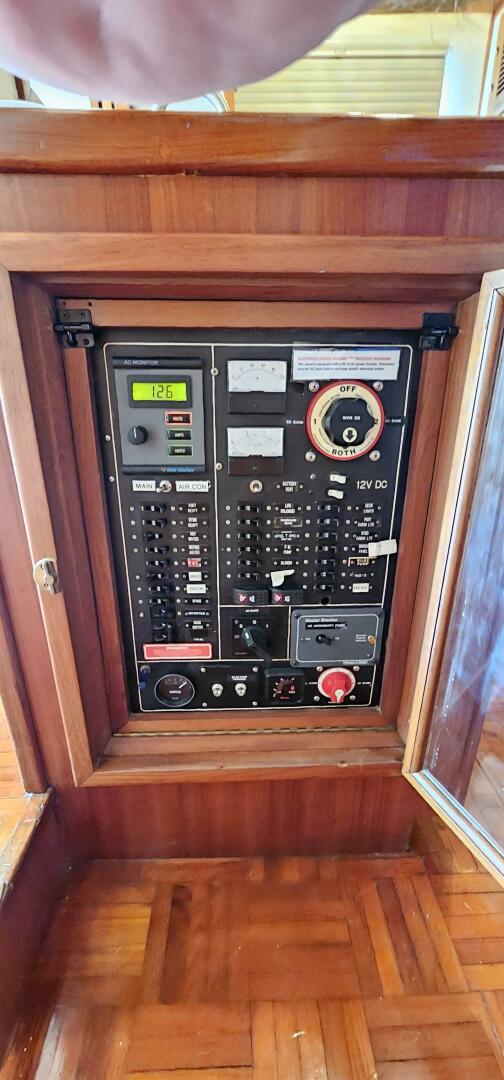

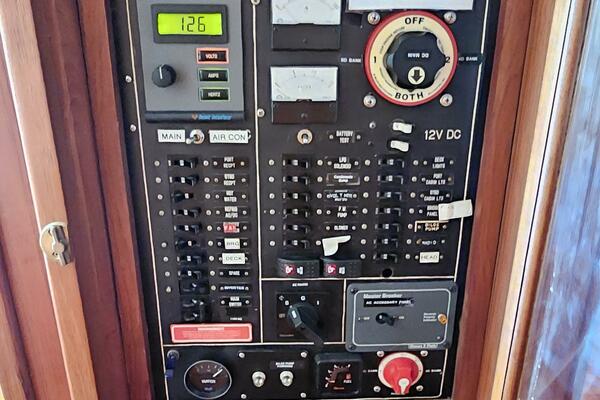

Electrical

• Generator - Kohler 6KW, model 6EKOD-S
• New -Generator remote switch installed)
• NEW  VICTRON Inverter/Charger System – VICTRON COMBI – 3000W 12V (Inverter/Charger)
• VICTRON ENERGY CERBO GX (Media Controller)
• VICTRON BATTERY MONITOR (BMV-712)
• 50-amp 3 position rotary switch
• VICTRON LYNX BATTERY MONITOR/SHUNT
• Smart shunt 500-amp (BMV17455)
• VICTRON ENERGY SMART BATTERY SENSE
• VIC ENERGY SMART BAT protect

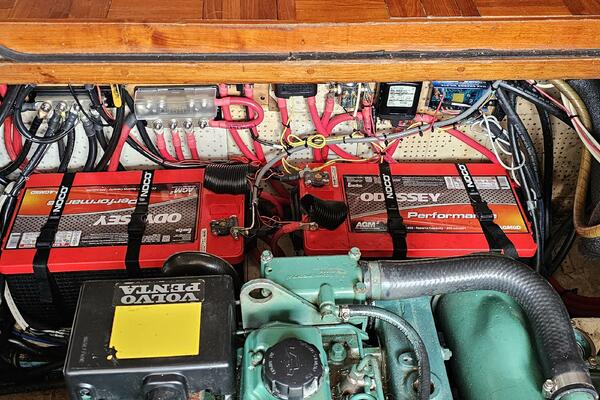

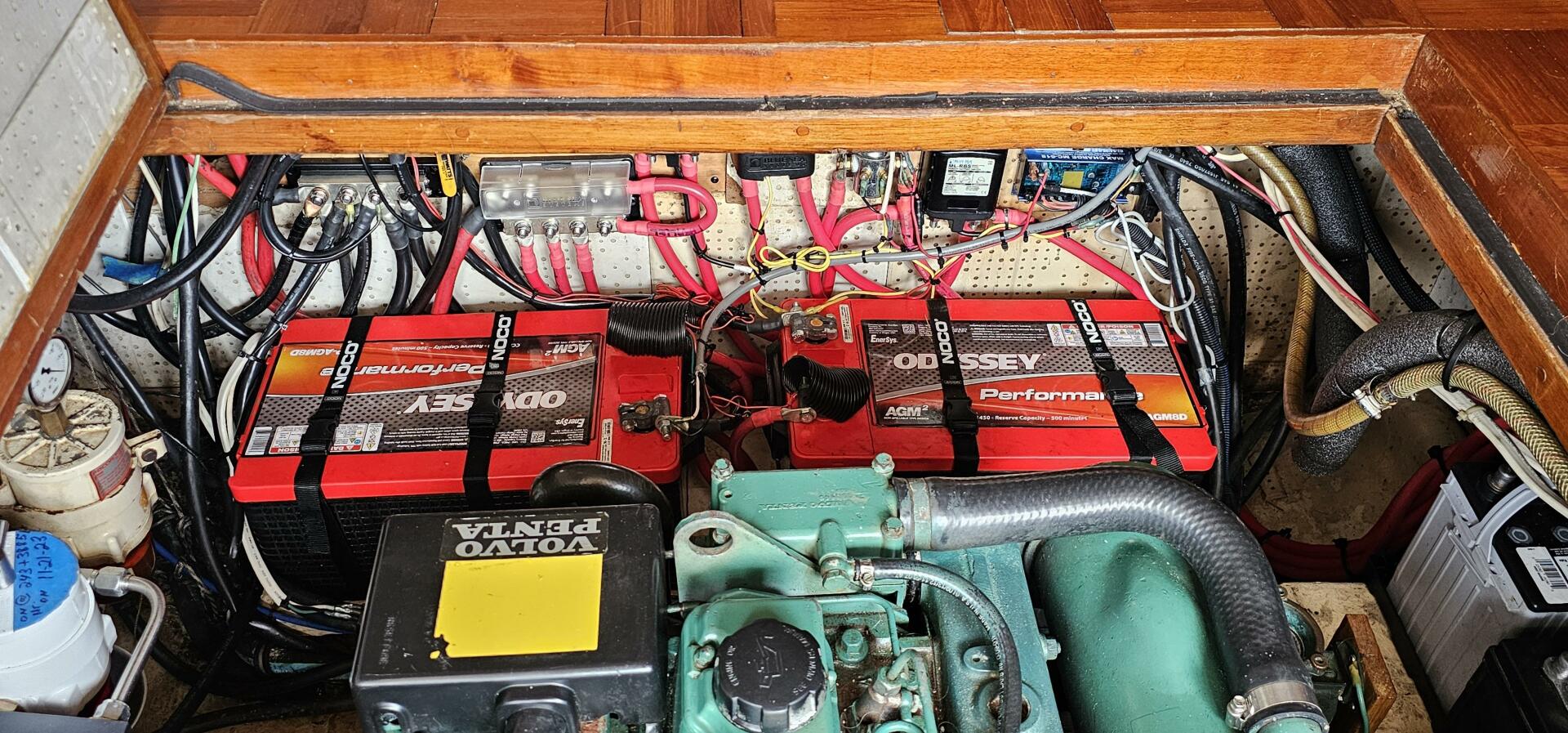

• NEW 2 – 8D AGM Batteries (House Bank #1)
• NEW 3-4D AGM Batteries (House Bank #2)
• NEW 1-31 series AGM Battery (Main engine start)
• NEW 1-27 series AGM Battery (Generator start)
• NEW Battery Bank components: ACRs, Bus Bars, Switches, Trays, Straps, etc.
• Wire & Cable
• NEW Additional: Breakers, fuses, holders, fasteners, connectors, heat shrink, starboard, straps, etc.
• NEW Full system control and monitoring via Cerbo GX touch screen MFD or Victron Connectapp
• NEW Alternator – Balmar
• NEW External Regulator – Balmar MC-618

Mechanical

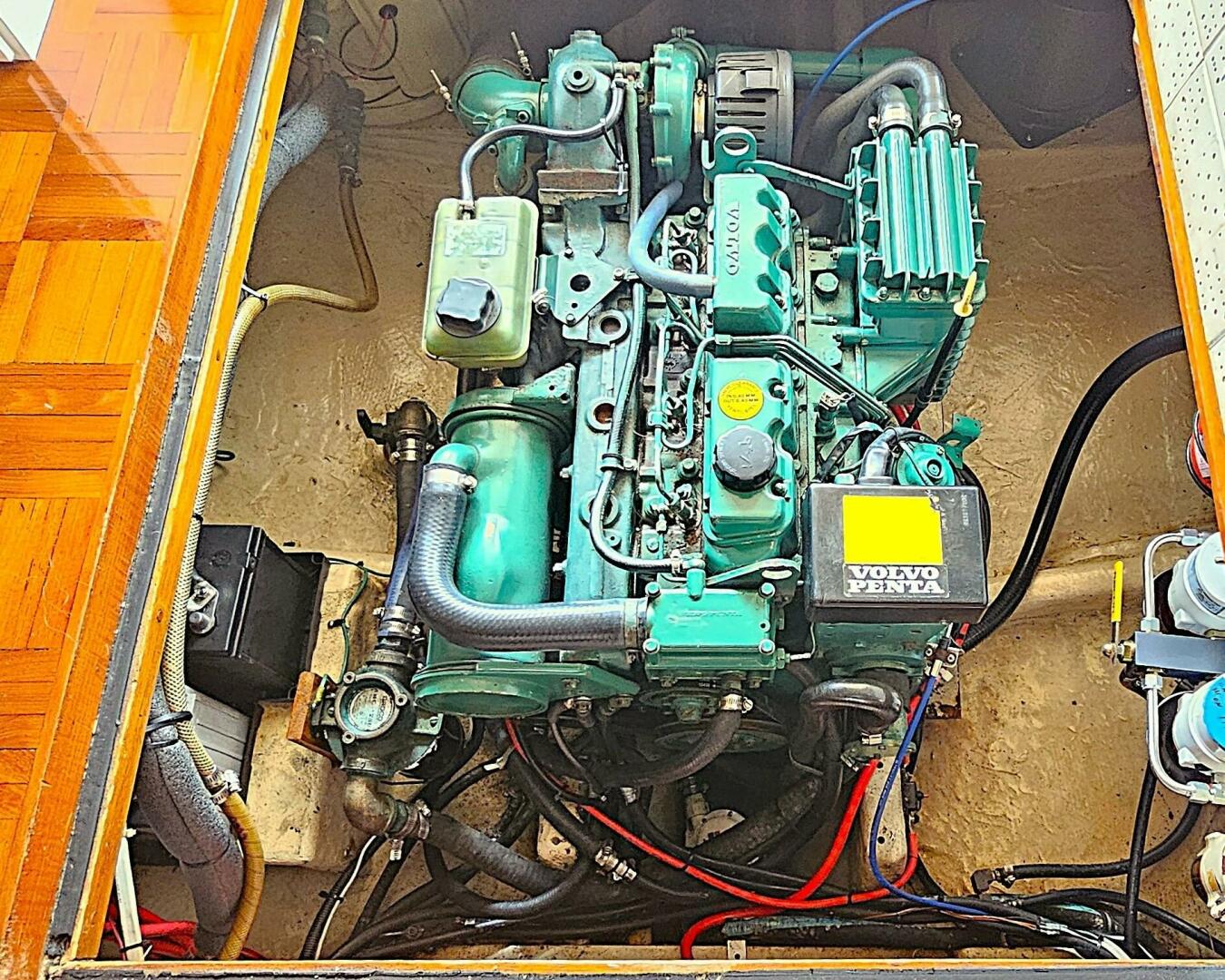

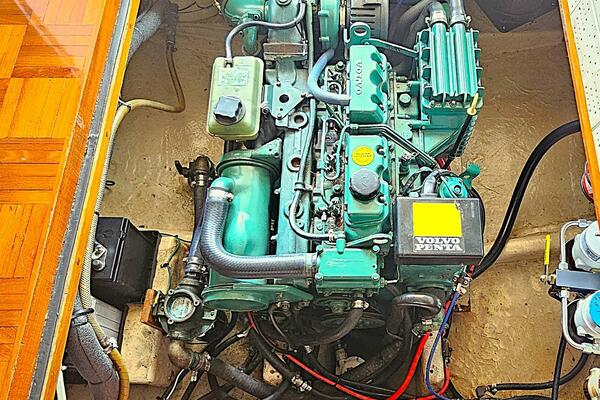

• Engine – Volvo Penta TAMD31L-A - 138 hp, Turbo, 4 cylinder –Rebuilt 2018  Aprox 25 hours since rebuild
• Hydraulic Steer
• NEW Raritan Elegance electric marine toilet system. This is connected to either a 30-gallon holding tank or a Raritan Electro scan waste treatment system, USCG certified Type I MSD. That system alone is a $10,000 dollar upgrade
• Vetus Bow thruster -24 volt bow thruster
• Air Conditioning (Two units)Forward Berth and Galley - Dometic DTG8 115V 50/60HZ 410A , 8,000 BTU - Turbo w/ air sensor DTG8-1171 205160089 installed new ( August 2021)
• Salon – Dometic ECD 10K, 10,000 BTU
• Water Heater - SuperStor Model SS-12M, s/n A29C4817 – 12 Gallon

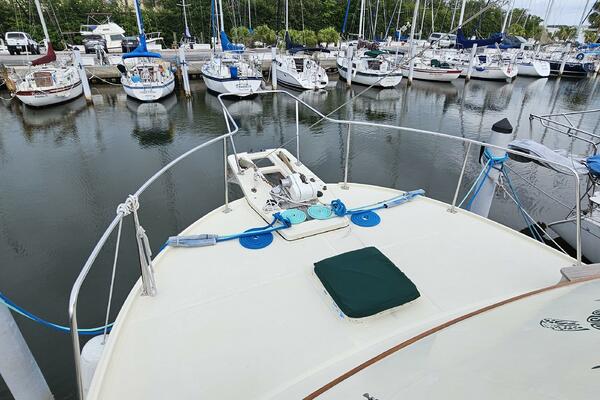

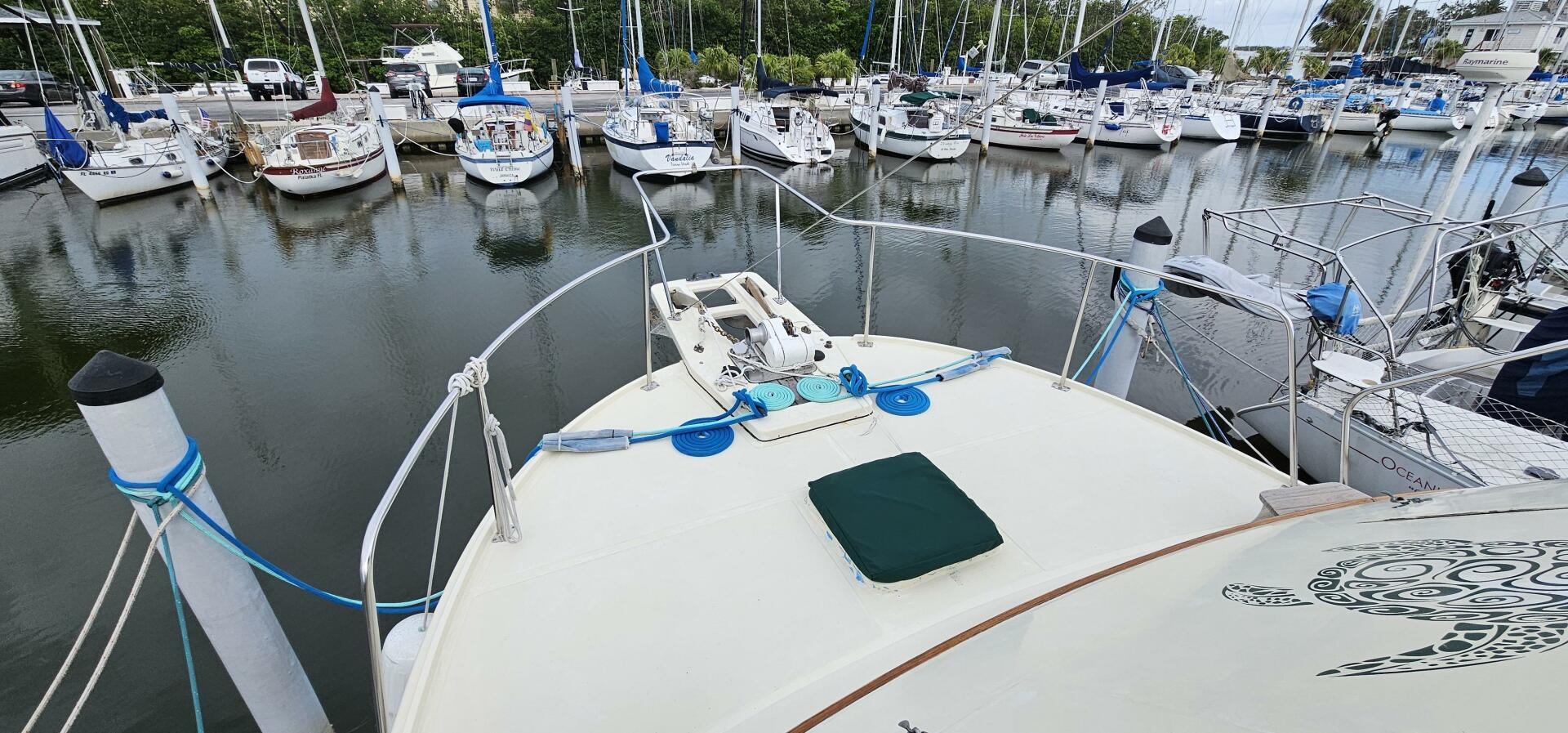

Ground Tackle

• Primary - Bruce 20 KG anchor with reported 25' of 3/8" chain and 140' of nylon three strand rope.
• Secondary - Anchor Secondary - Port - Delta, weight not seen, with reported 22' of 3/8" chain and 200' of nylon

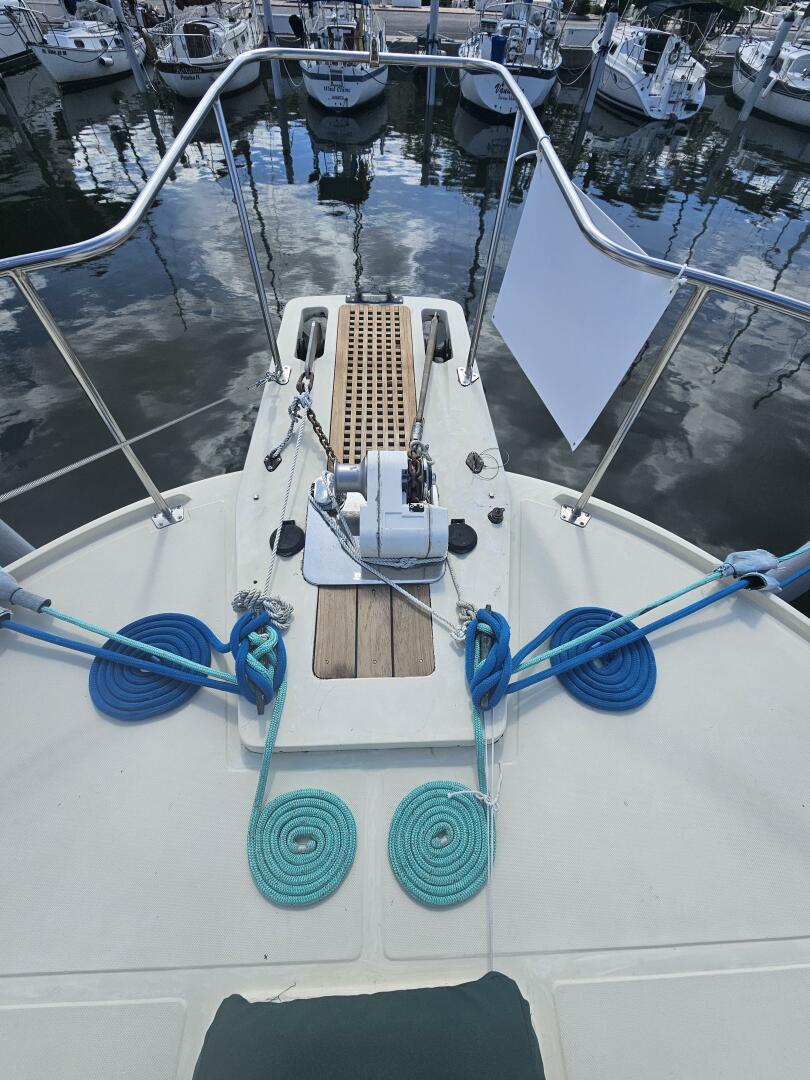

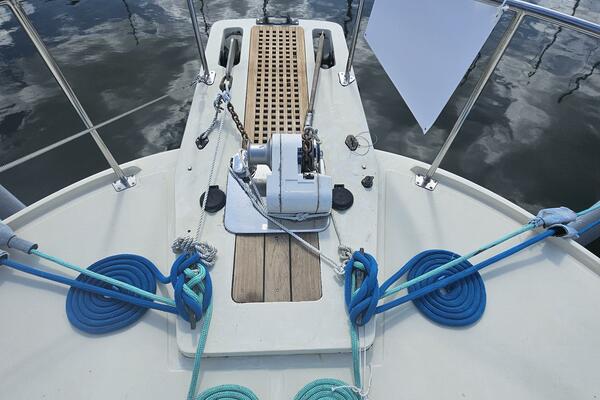

• Windlass – Electric - 12 Volt DC, Simson Lawrence "Horizon 1500" (Rebuilt Motor 2024)
